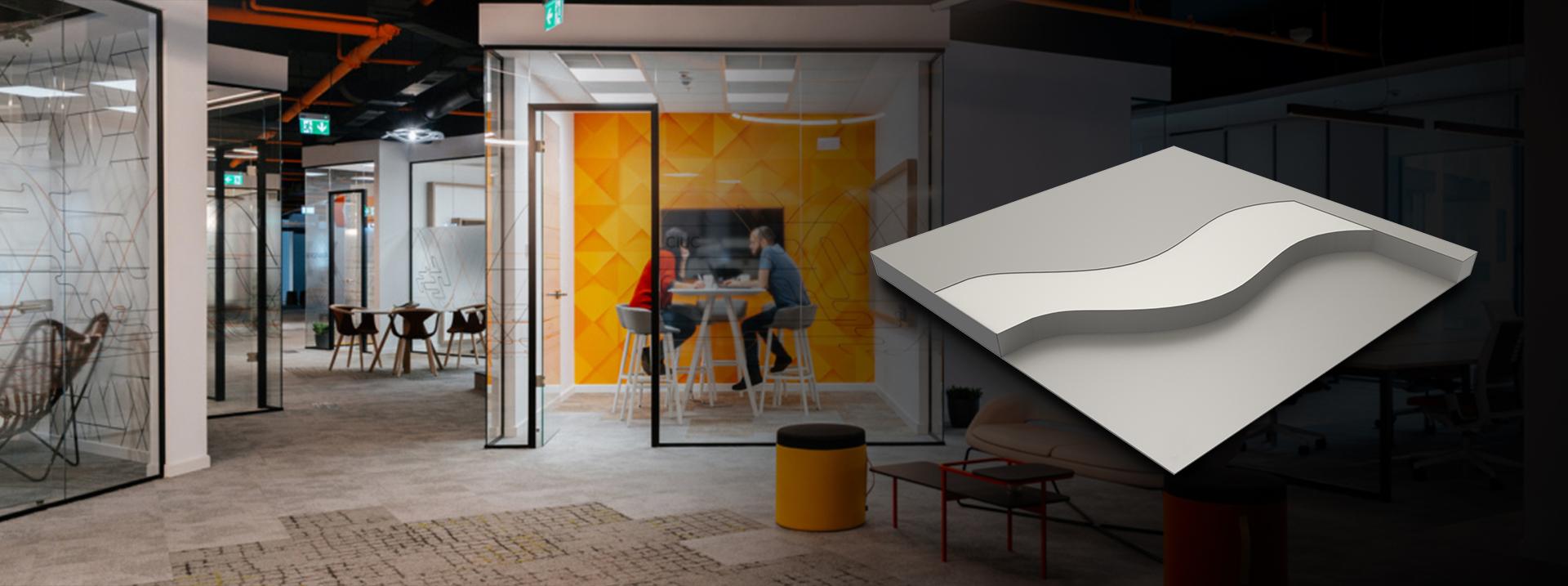

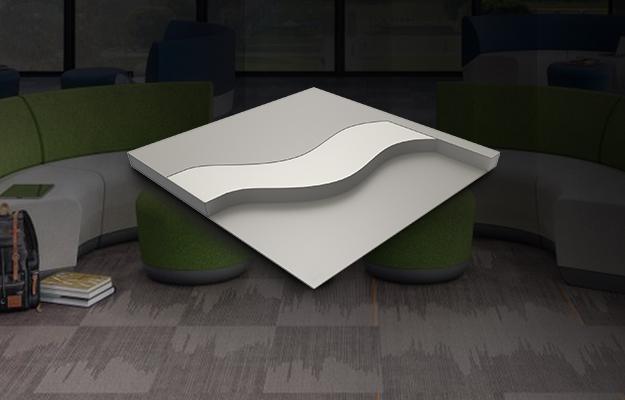

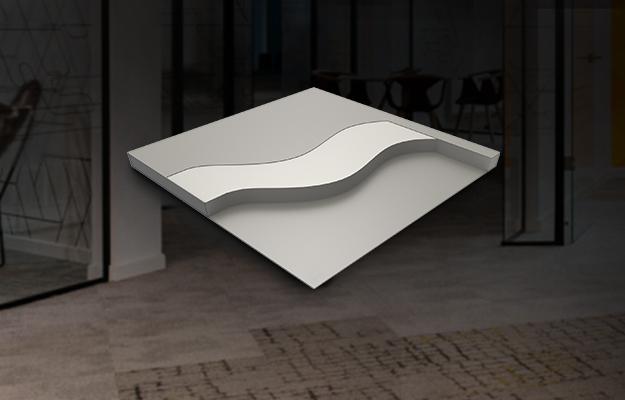

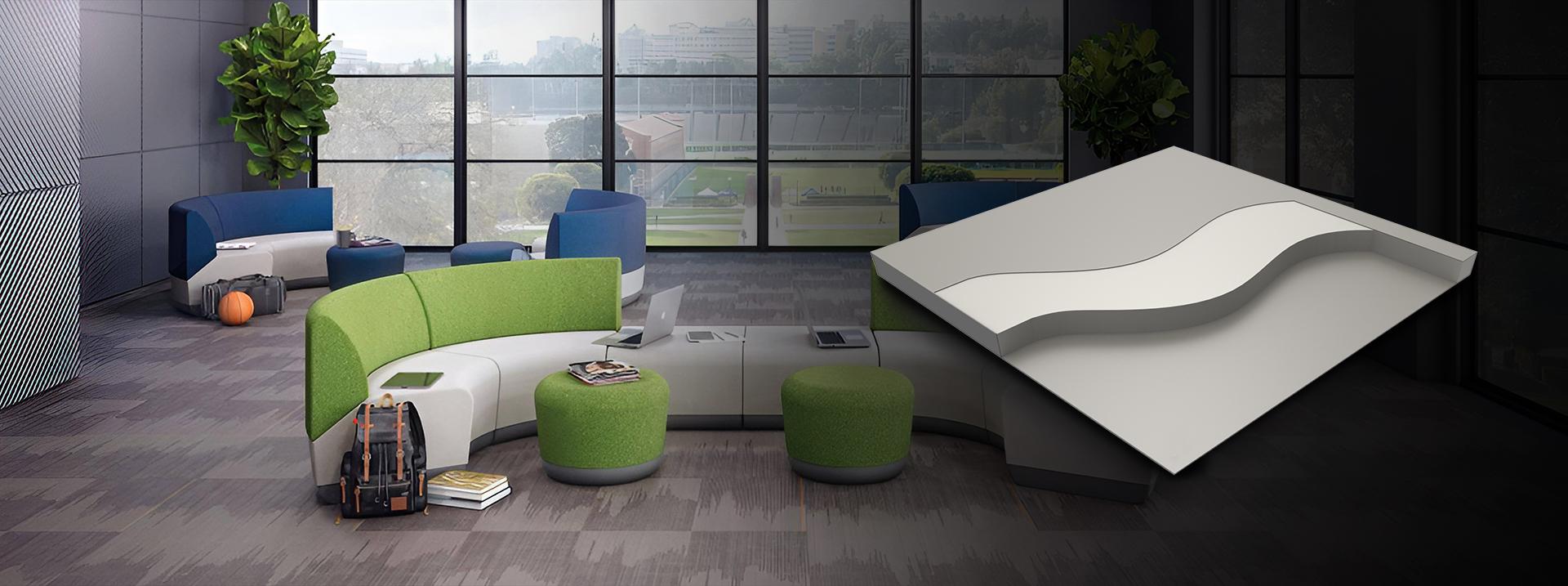

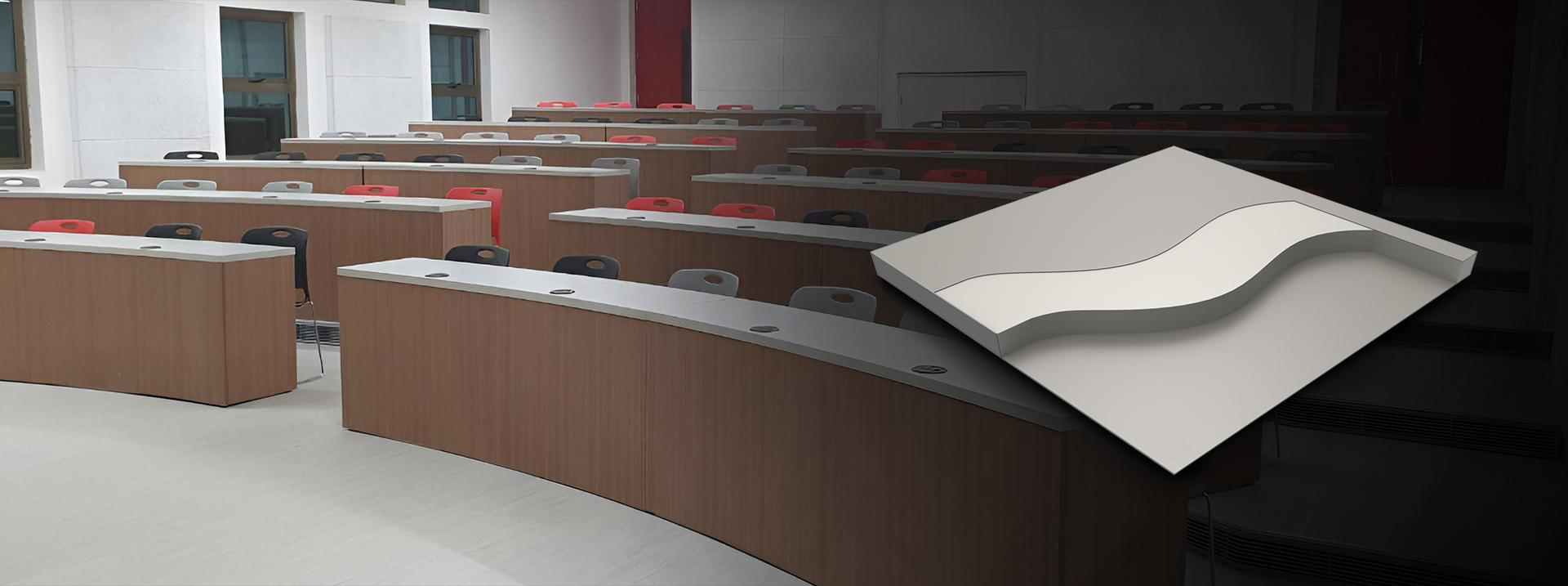

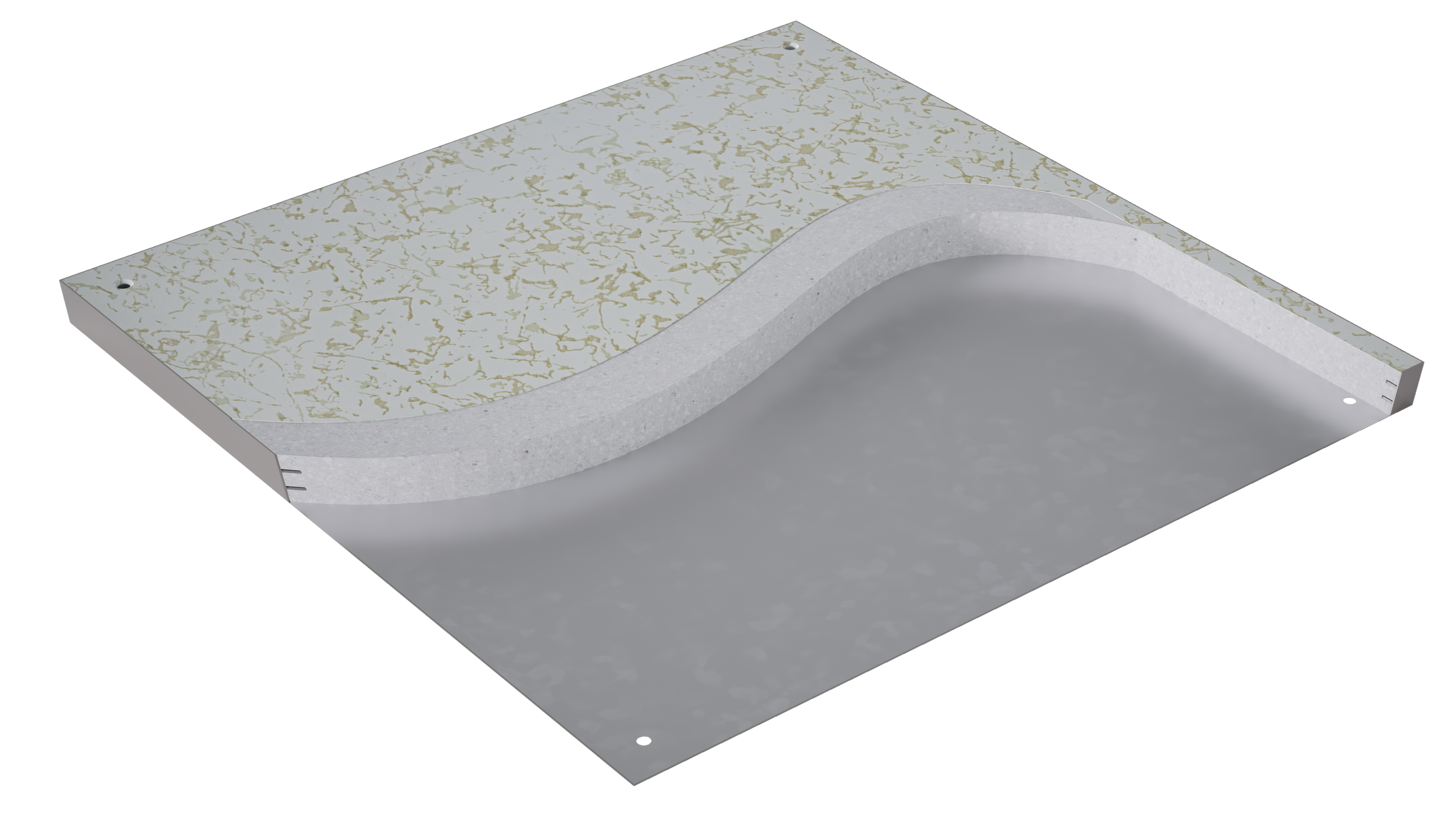

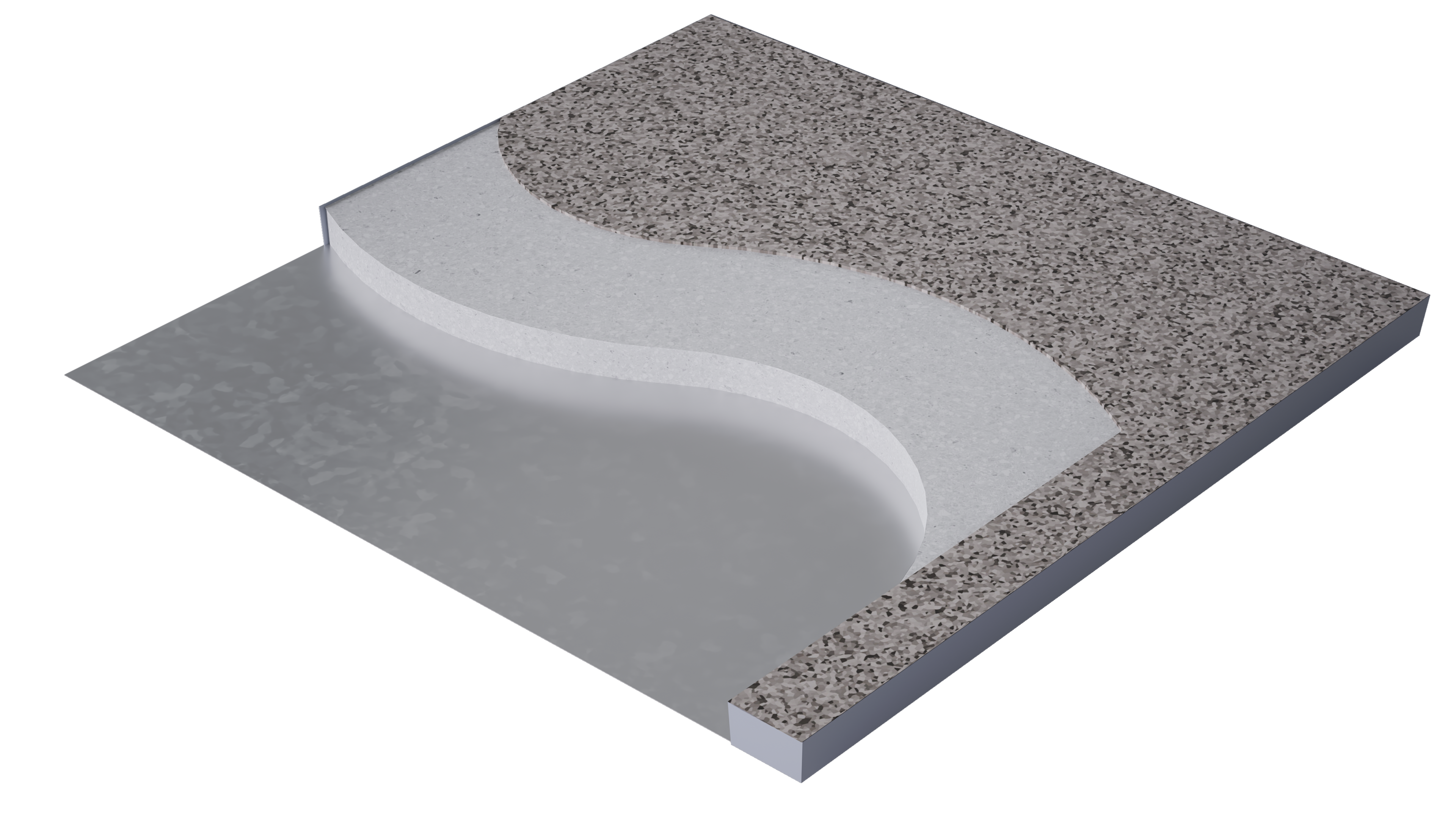

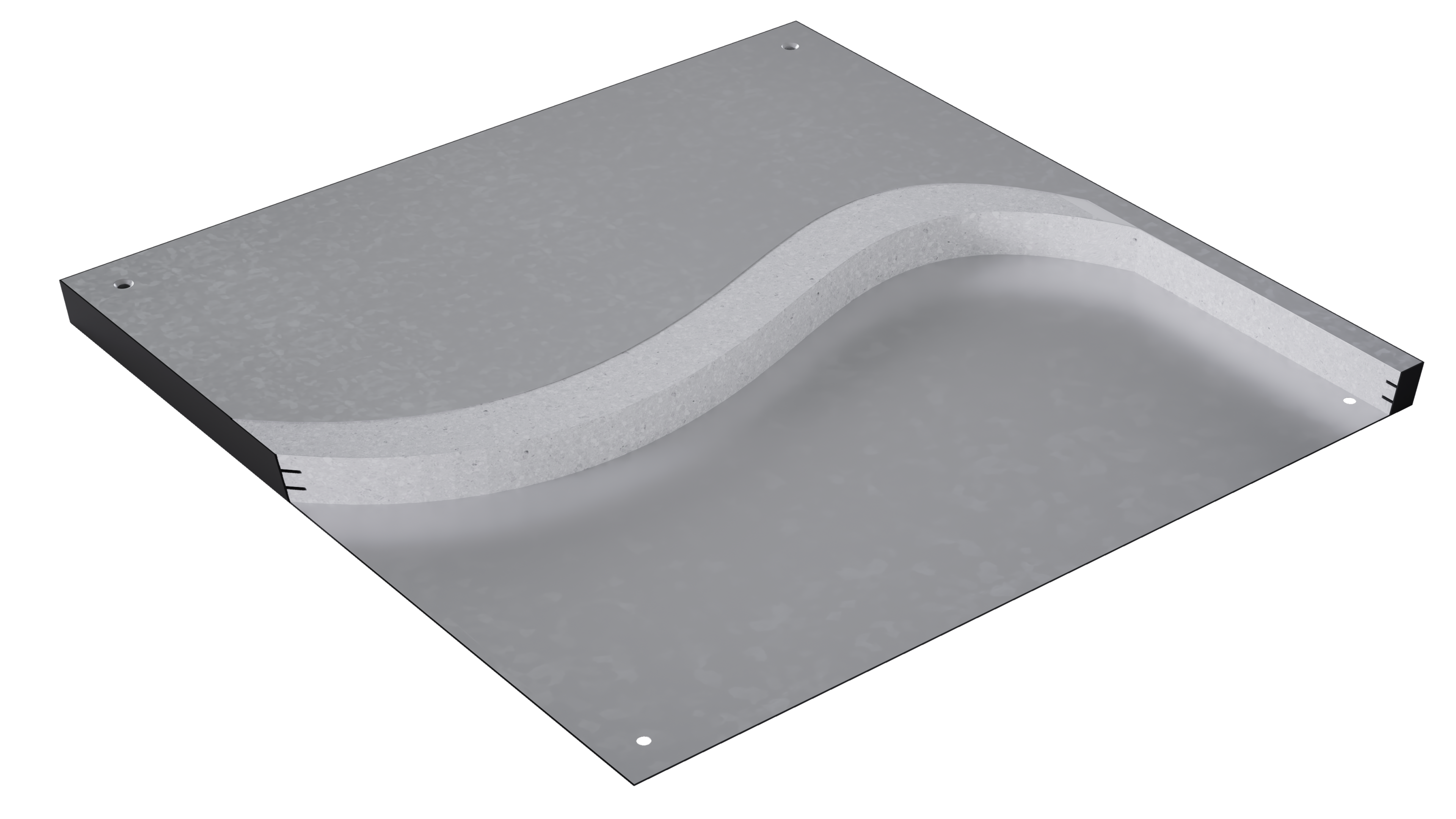

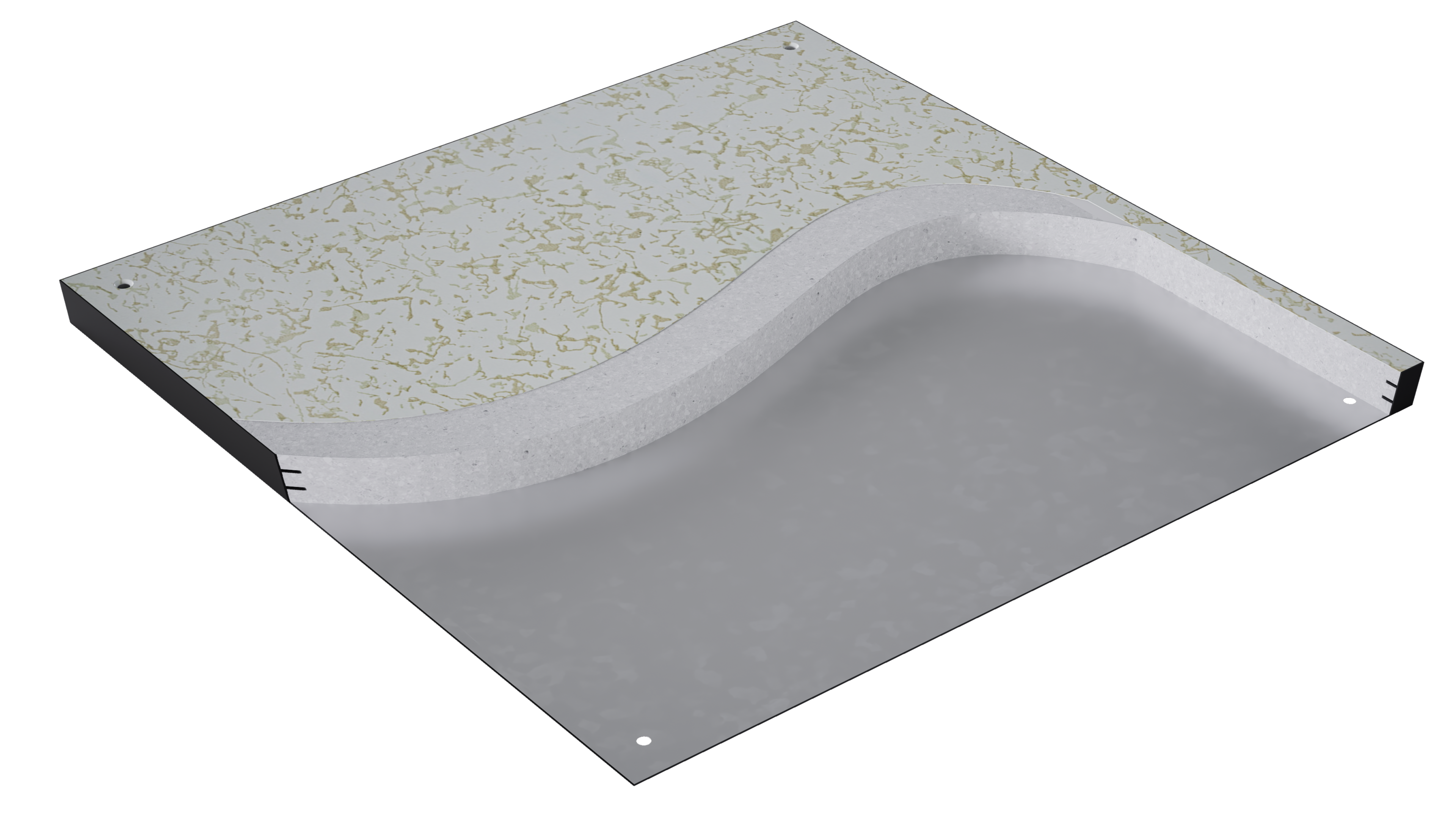

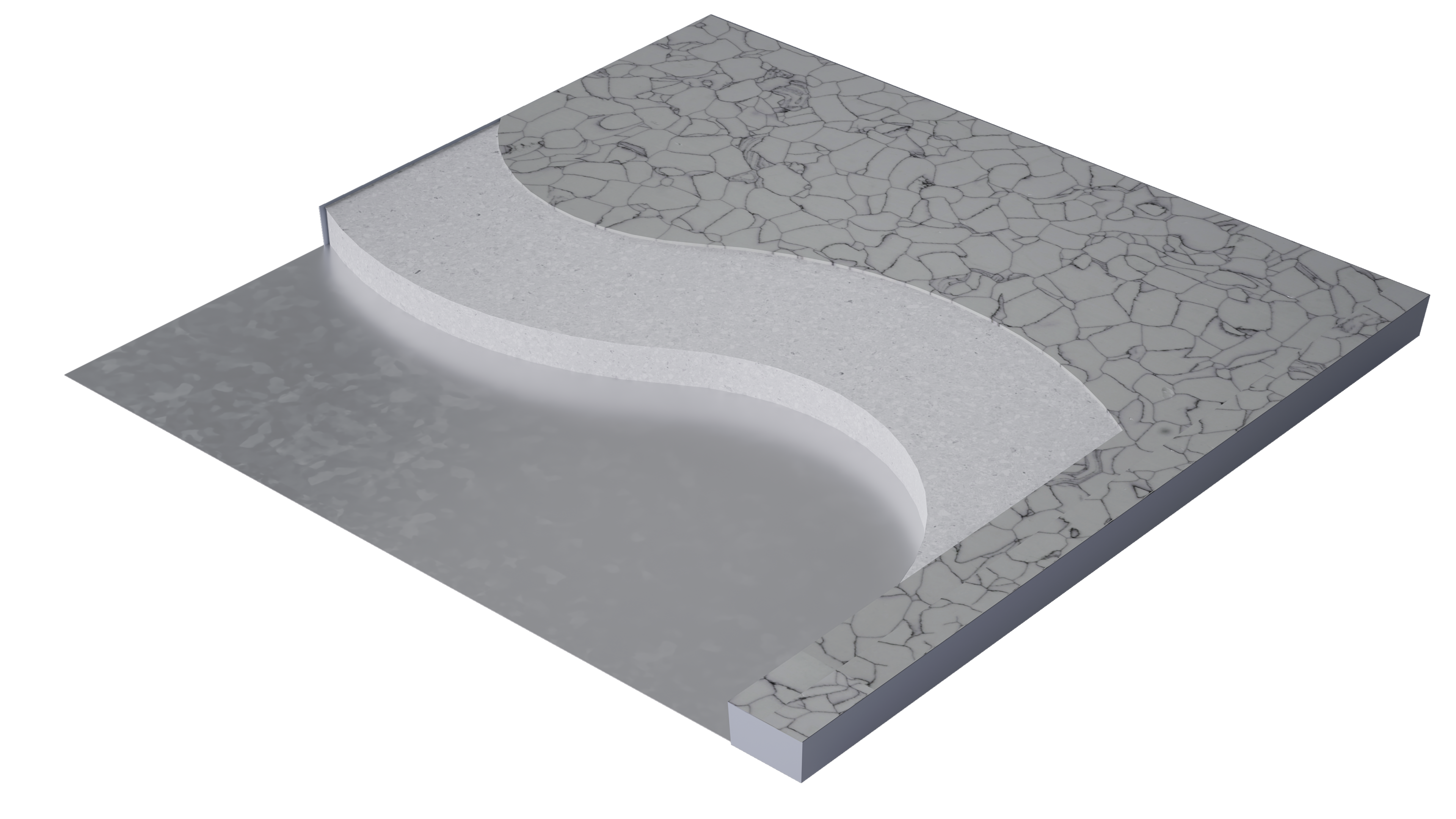

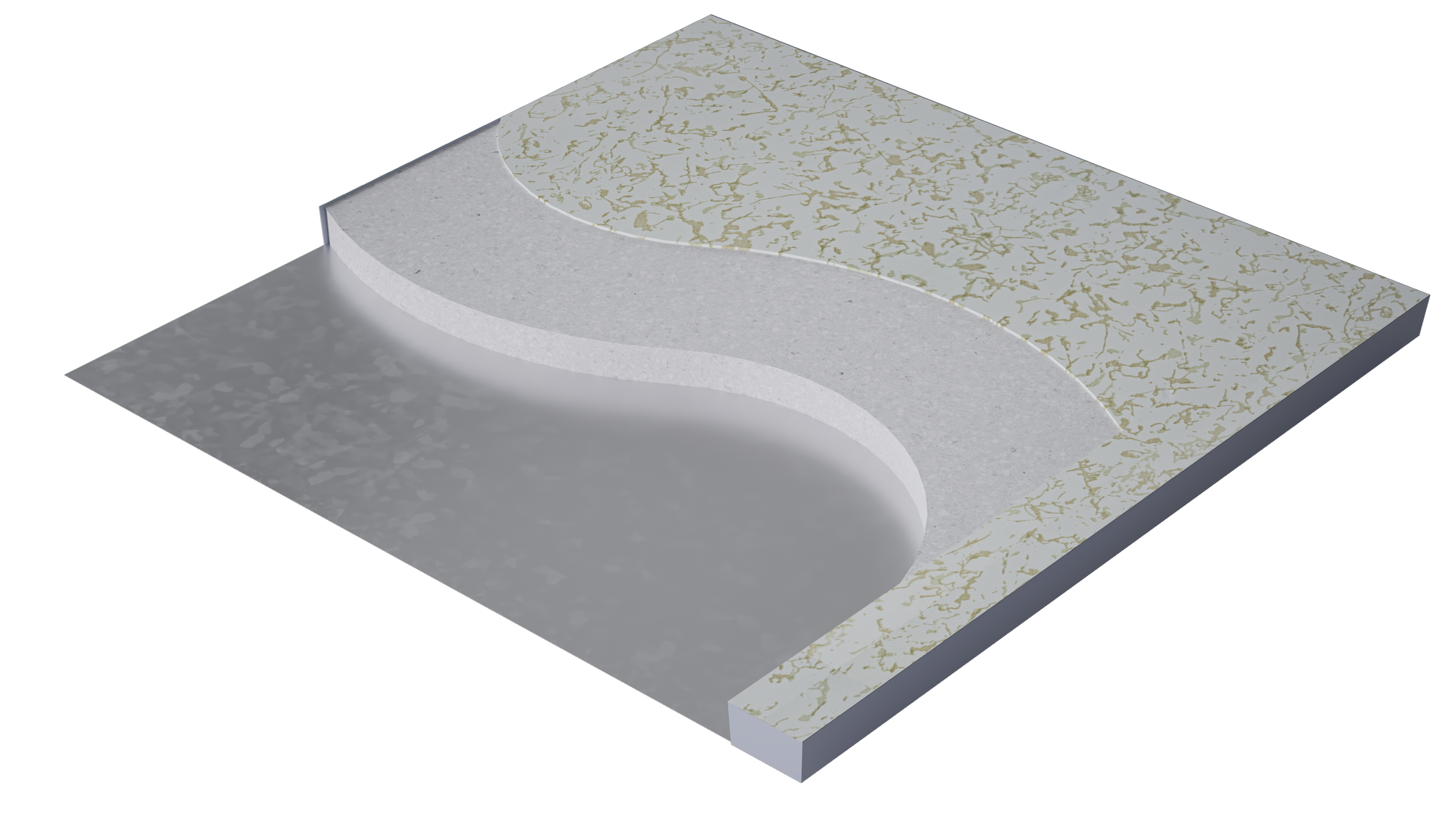

CALCIUM SULPHATE PANEL
An environmentally conscious panel made from calcium sulphate core, high-density of natural gypsum are underpinned by rigorous testing with exceptional acoustic properties. These panels are available with a range of edge band applied to the tapered edge of the panel for improved impact load and longevity of the system.
CORE: High-density natural gypsum
DIMENSIONS: 23.62” x 23.62”

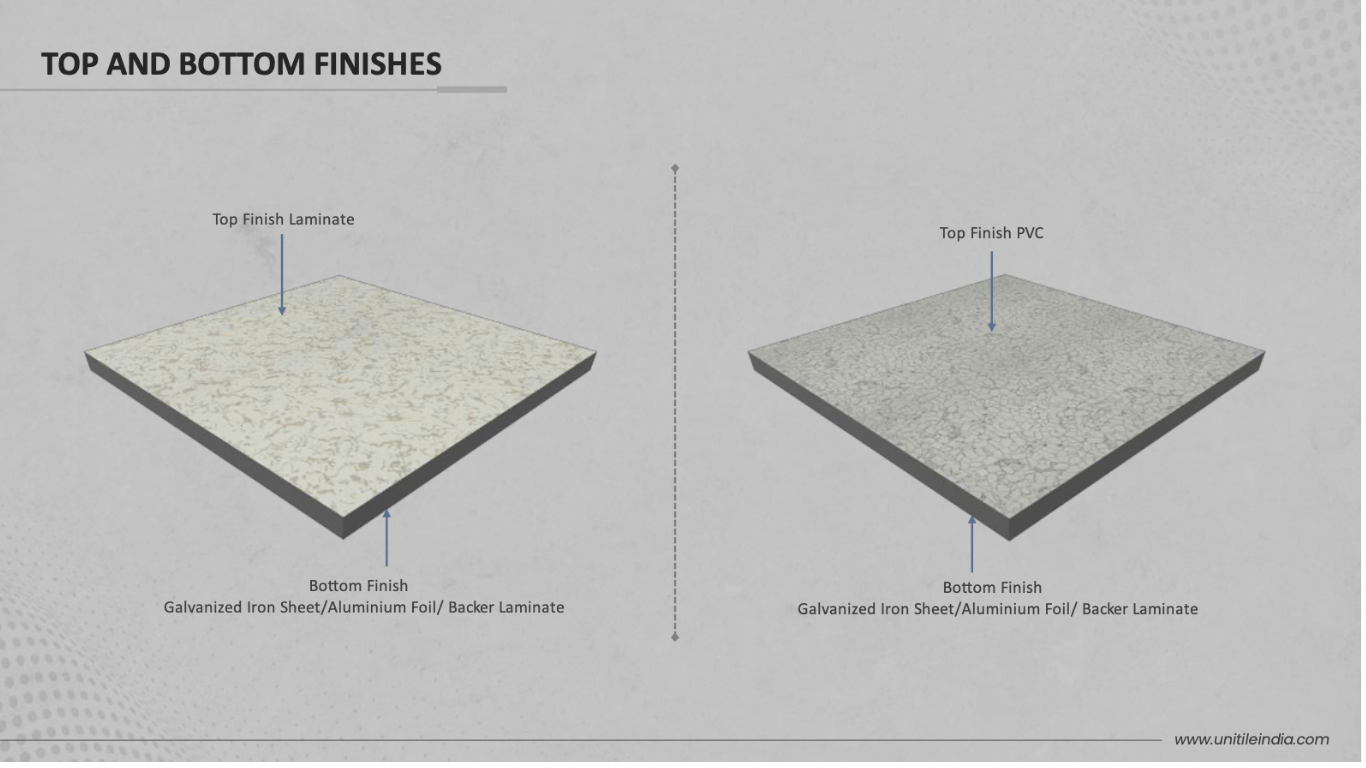

CORE THICKNESS: 1.34” + top finish thickness (performance finish as per loading finish)

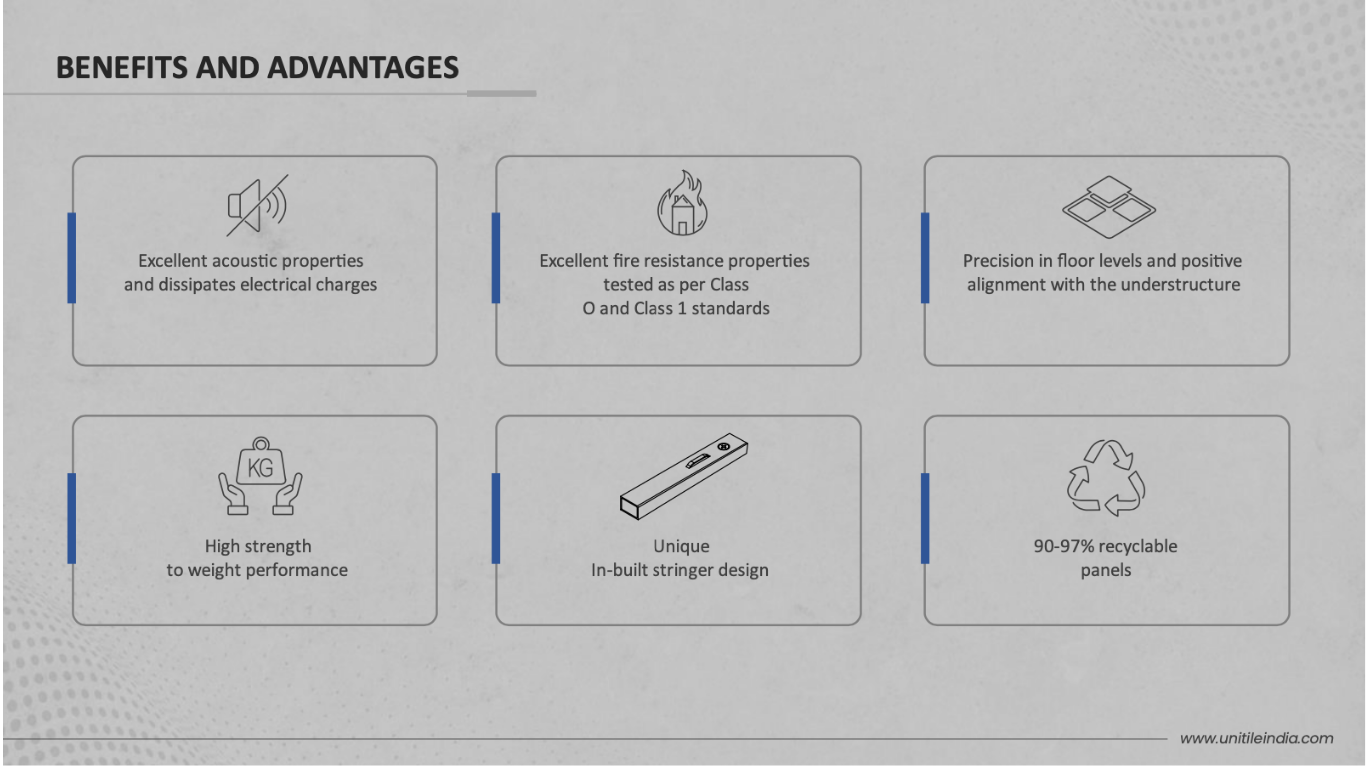

features
Excellent acoustic properties and Dissipates electrical charges
90-97% recyclable panels
High strength to weight performance
Excellent fire resistance properties tested as per Class O and Class 1 standards
Unique In-built stringer design
Precision in floor levels and positive alignment with the understructure
system selection guide
-

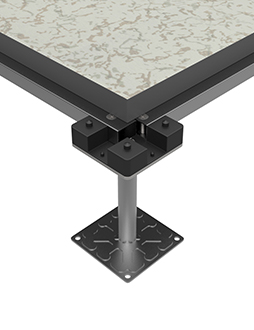

GRAVITY LAY
Substructure in Galvanized Steel Model: Free Standing Adjustment mm: + / -25
- FINISHED FLOOR HEIGHT:
- Minimum: 150 mm
Maximum: 2000 mm
-
ESRG
Substructure in Galvanized Steel with support & stringers for substructure height of over 300mm Model: ESRG Adjustment mm: + / -25
- FINISHED FLOOR HEIGHT:
- Minimum: 150 mm
Maximum: 2000 mm
-
Drawings
-
certificates
Test Report
Download
types of understructure support system
applications

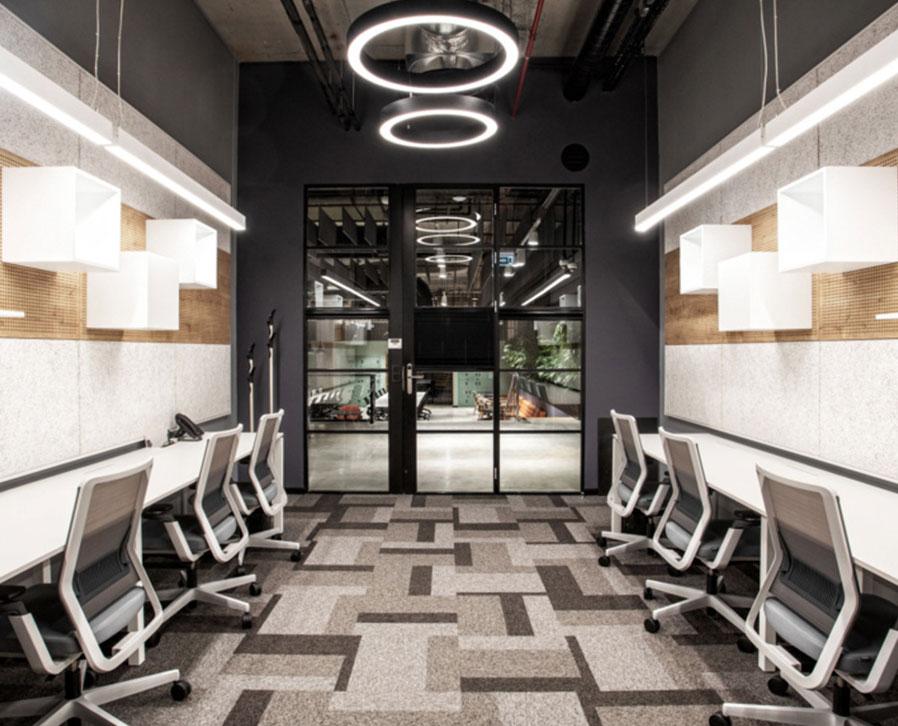

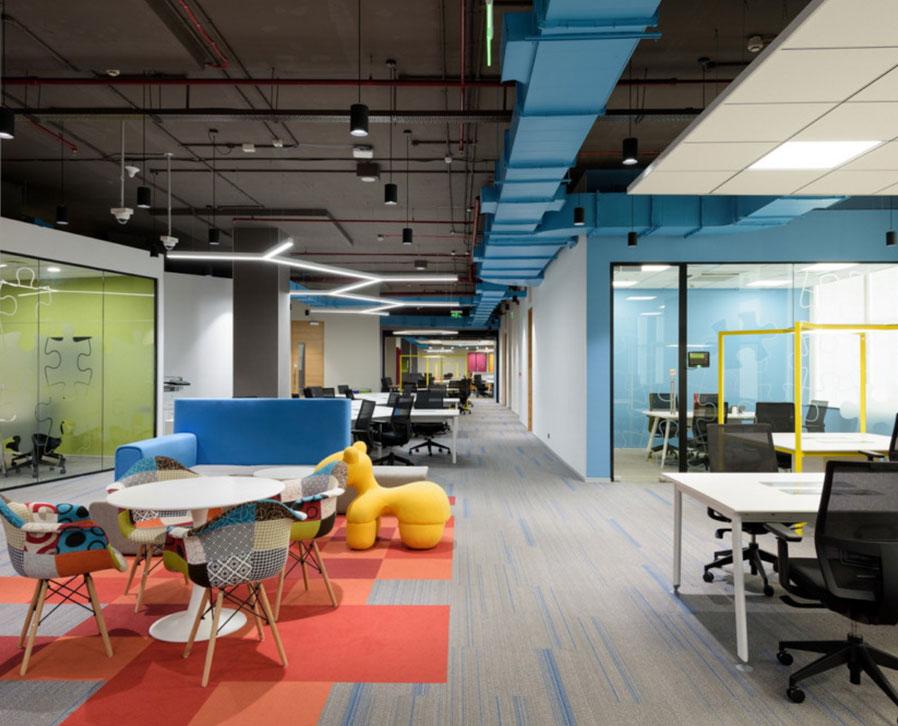

Open Offices

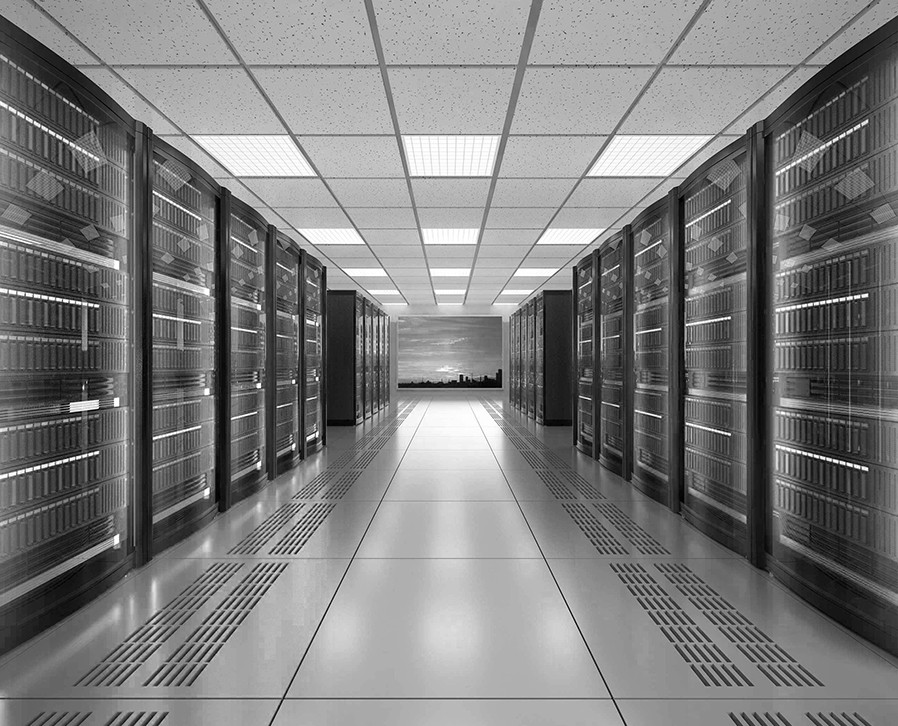

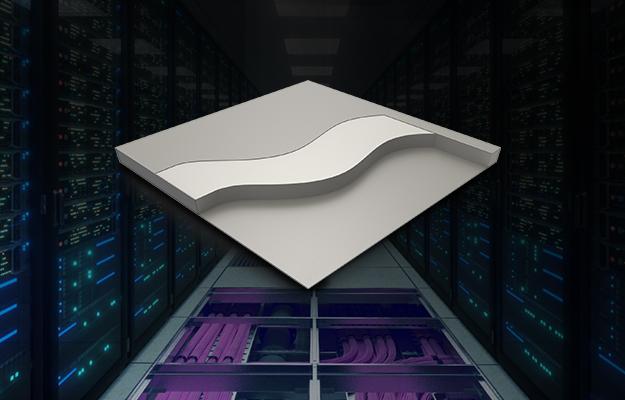

Data Center

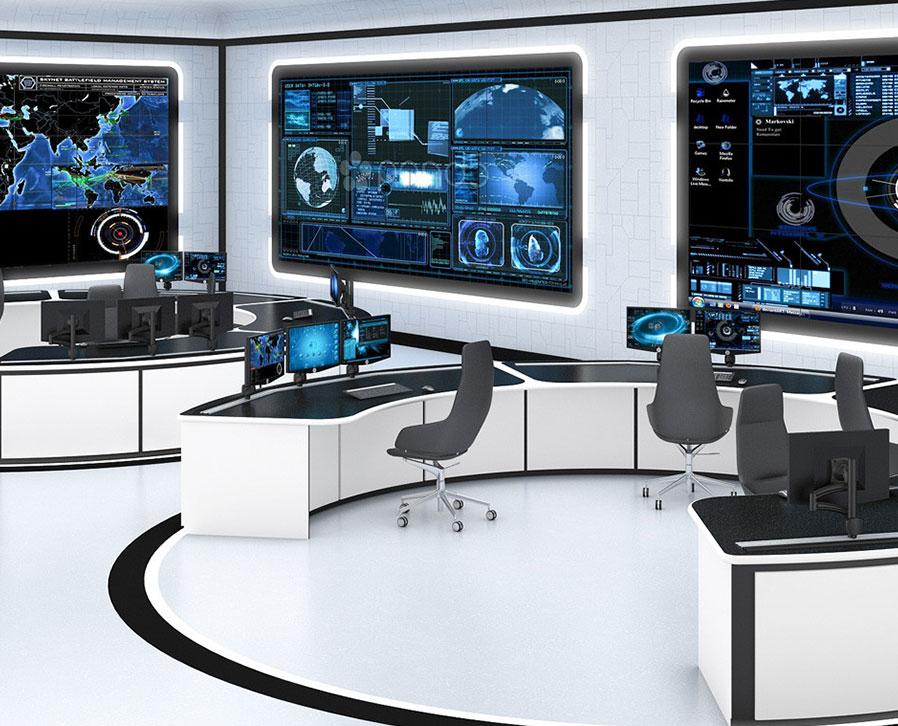

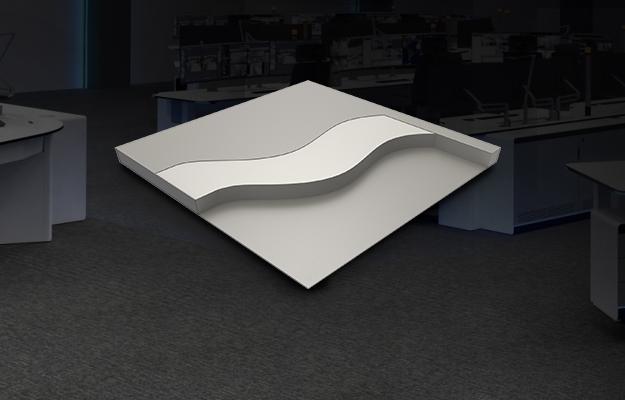

Control Room

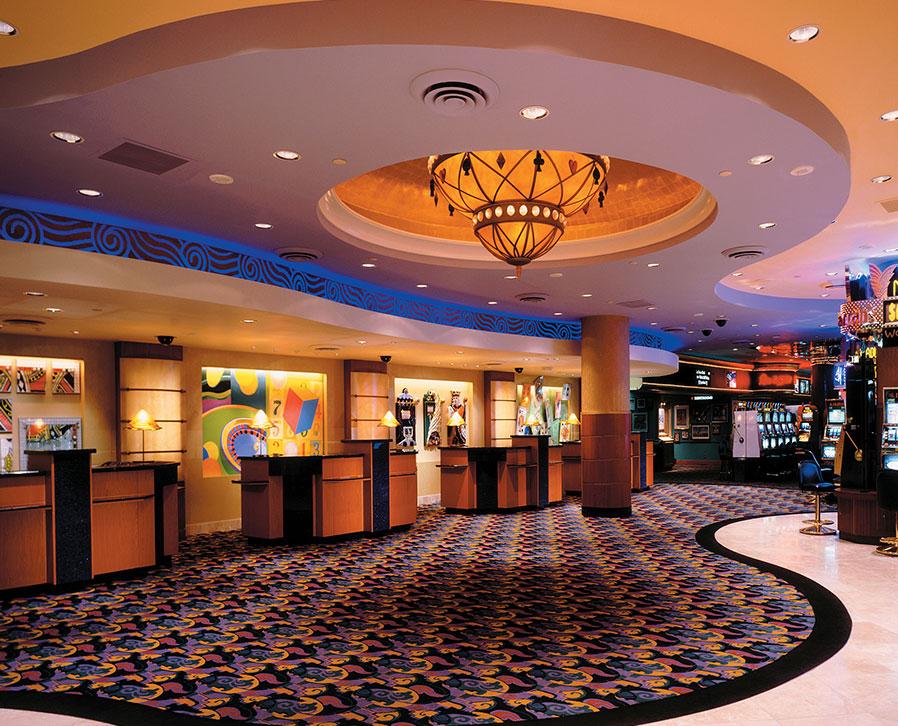

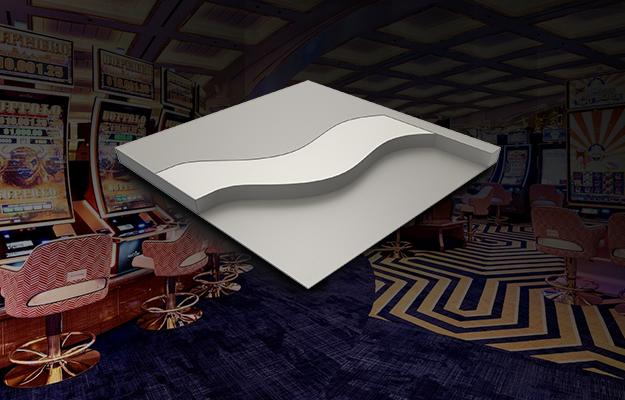

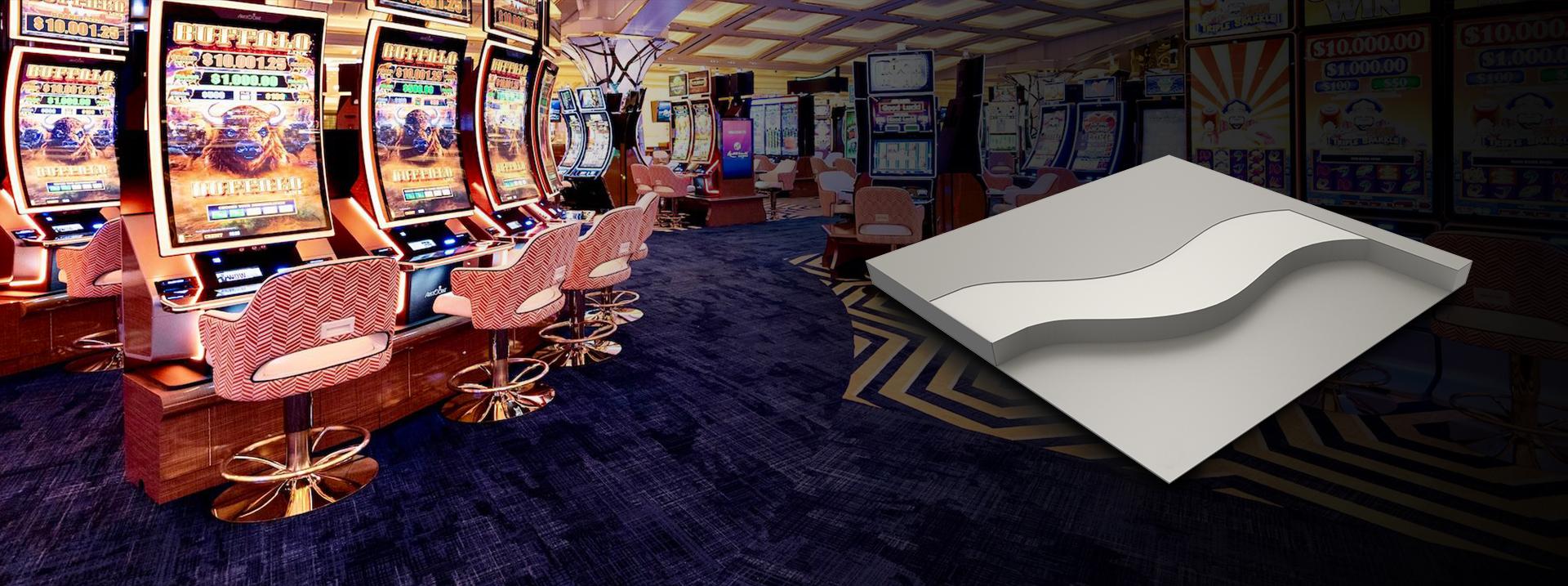

Casino

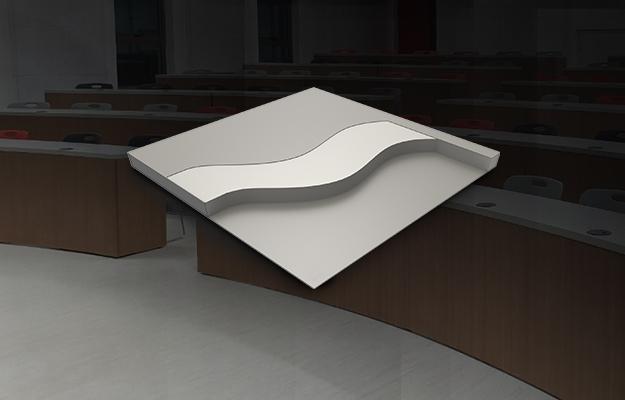

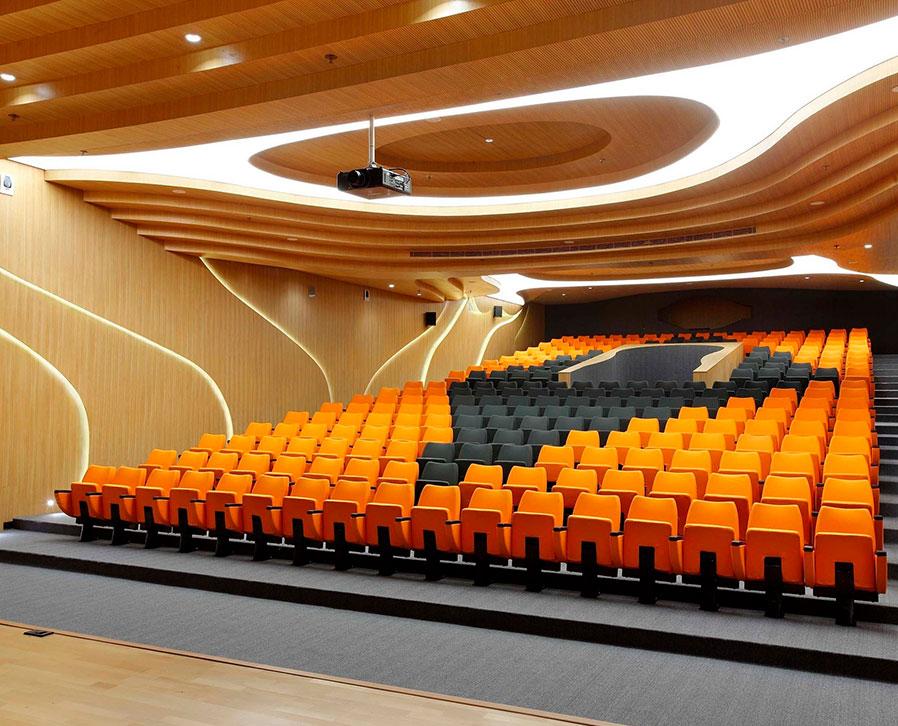

Education
