NEX-GEN SYSTEM

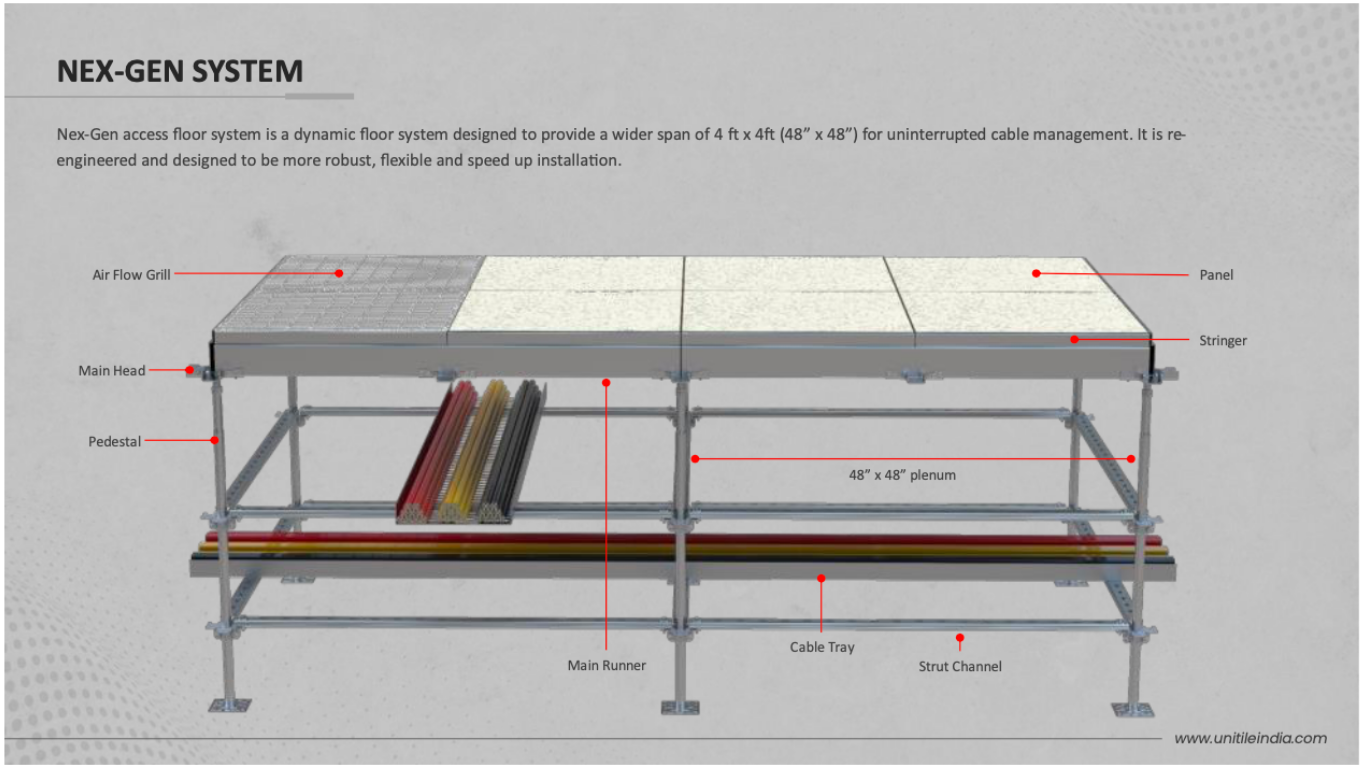

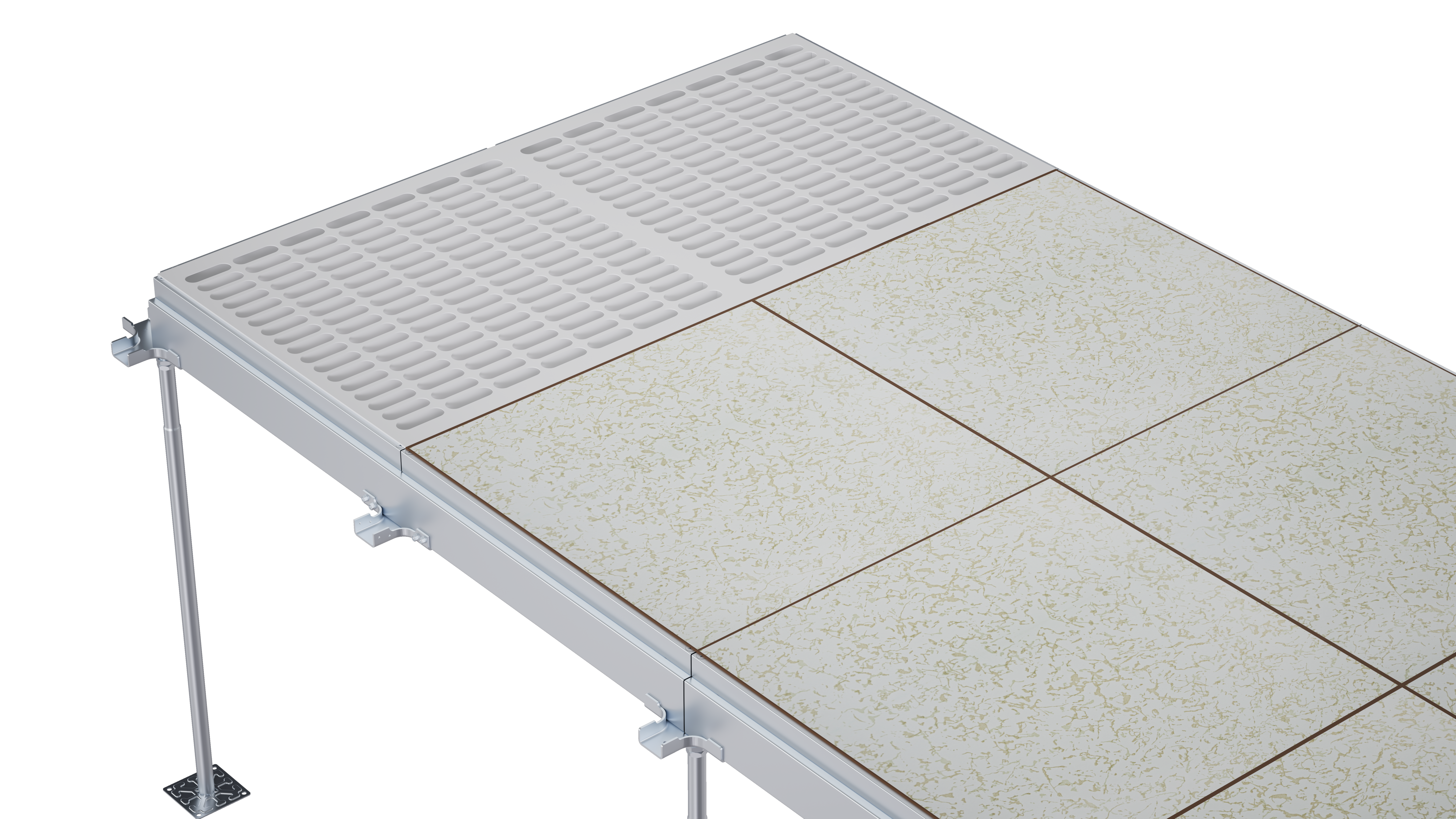

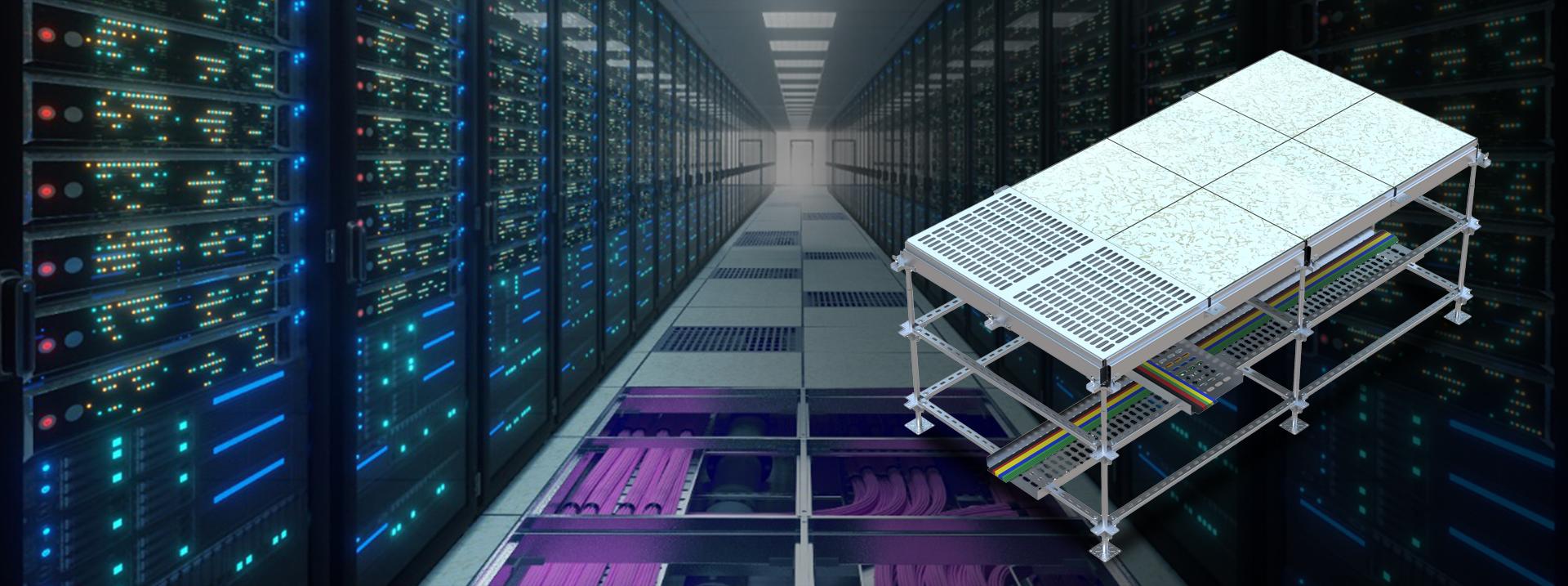

Nex-Gen access floor system is a dynamic floor system designed to provide a wider span of 4ft x 4ft (48” x 48”) for uninterrupted cable management. It is re-engineered and designed to be more robust, flexible and speed up installation. The revolutionary Nex-Gen access floor system boasts a redesigned structure, strategically engineered to offer an expanded cable management span during the construction phase, while simultaneously facilitating streamlined post-handover maintenance procedures for facility operators.

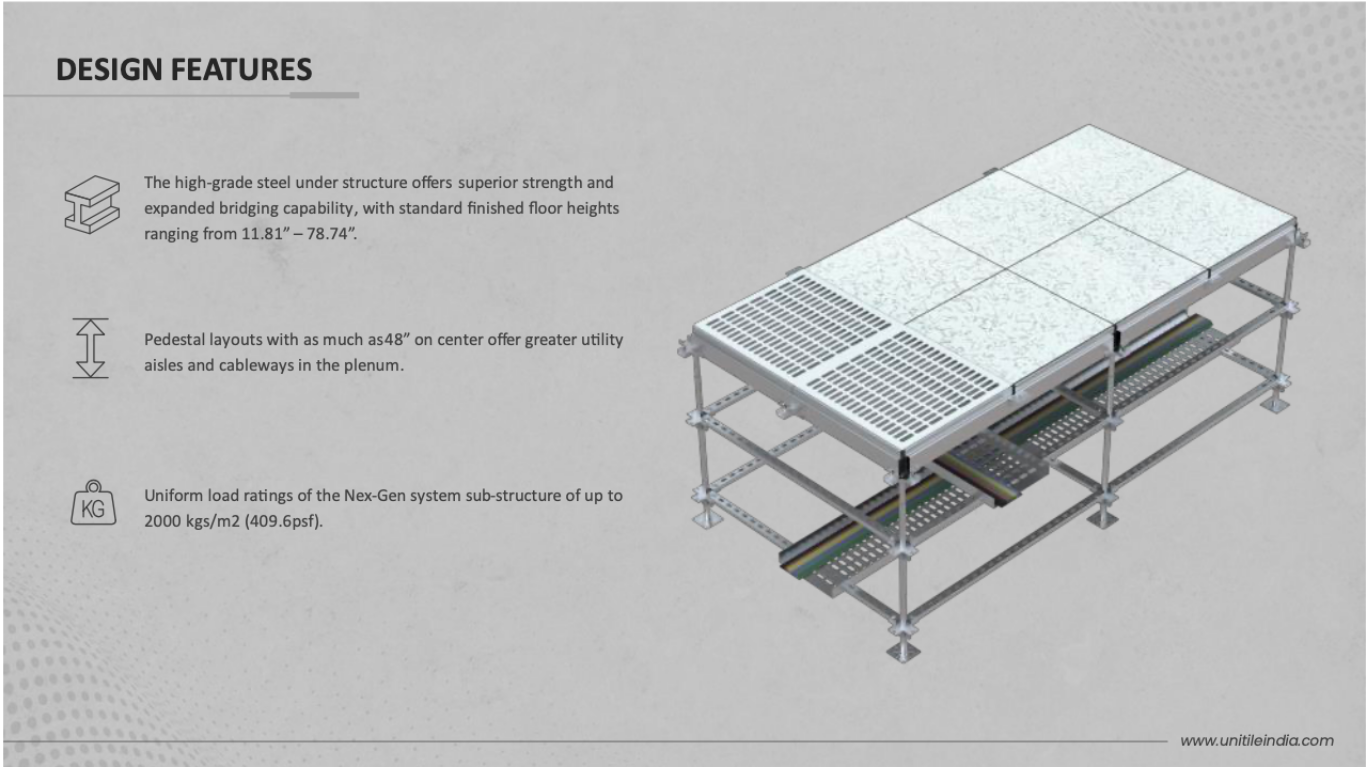

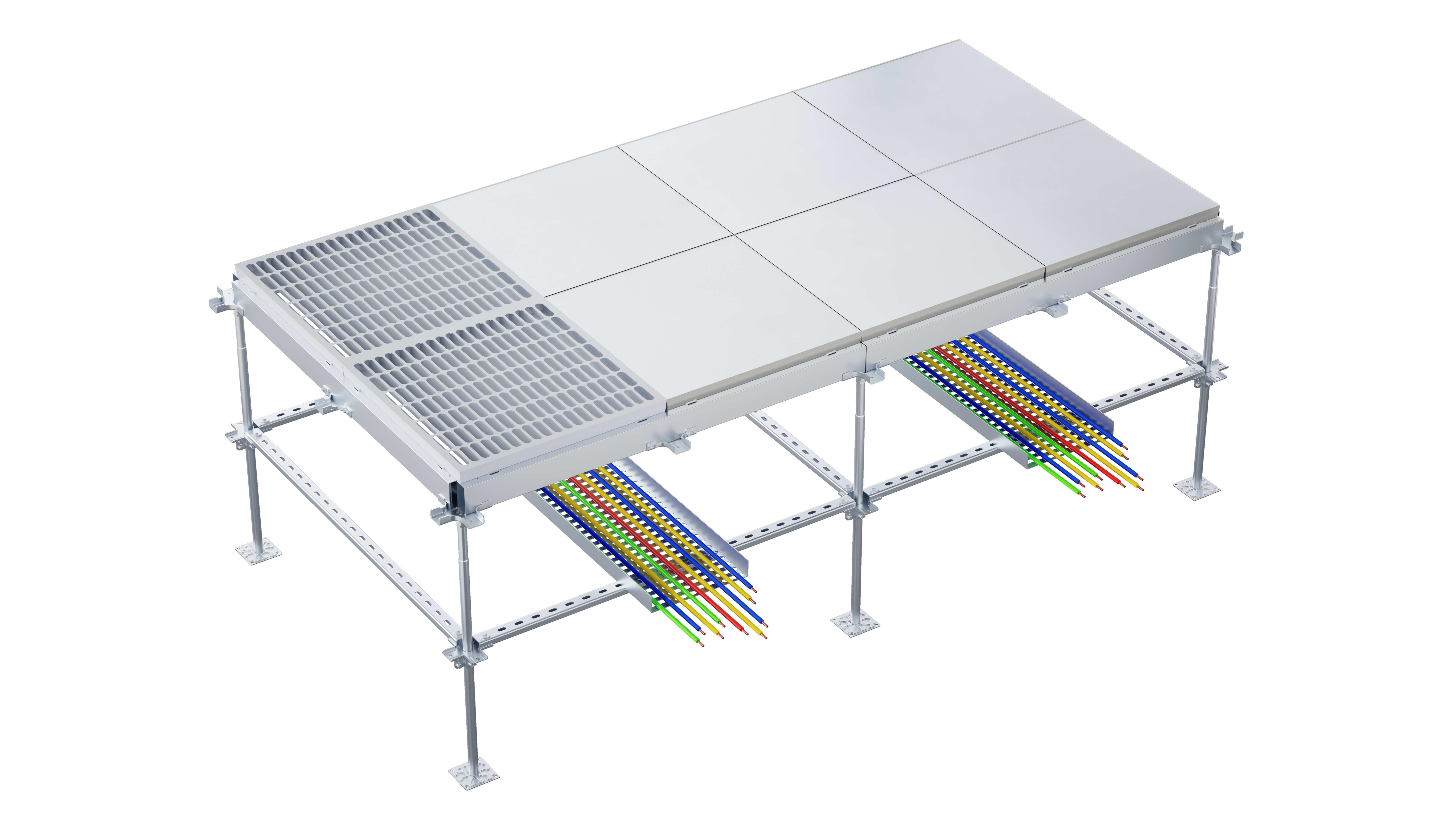

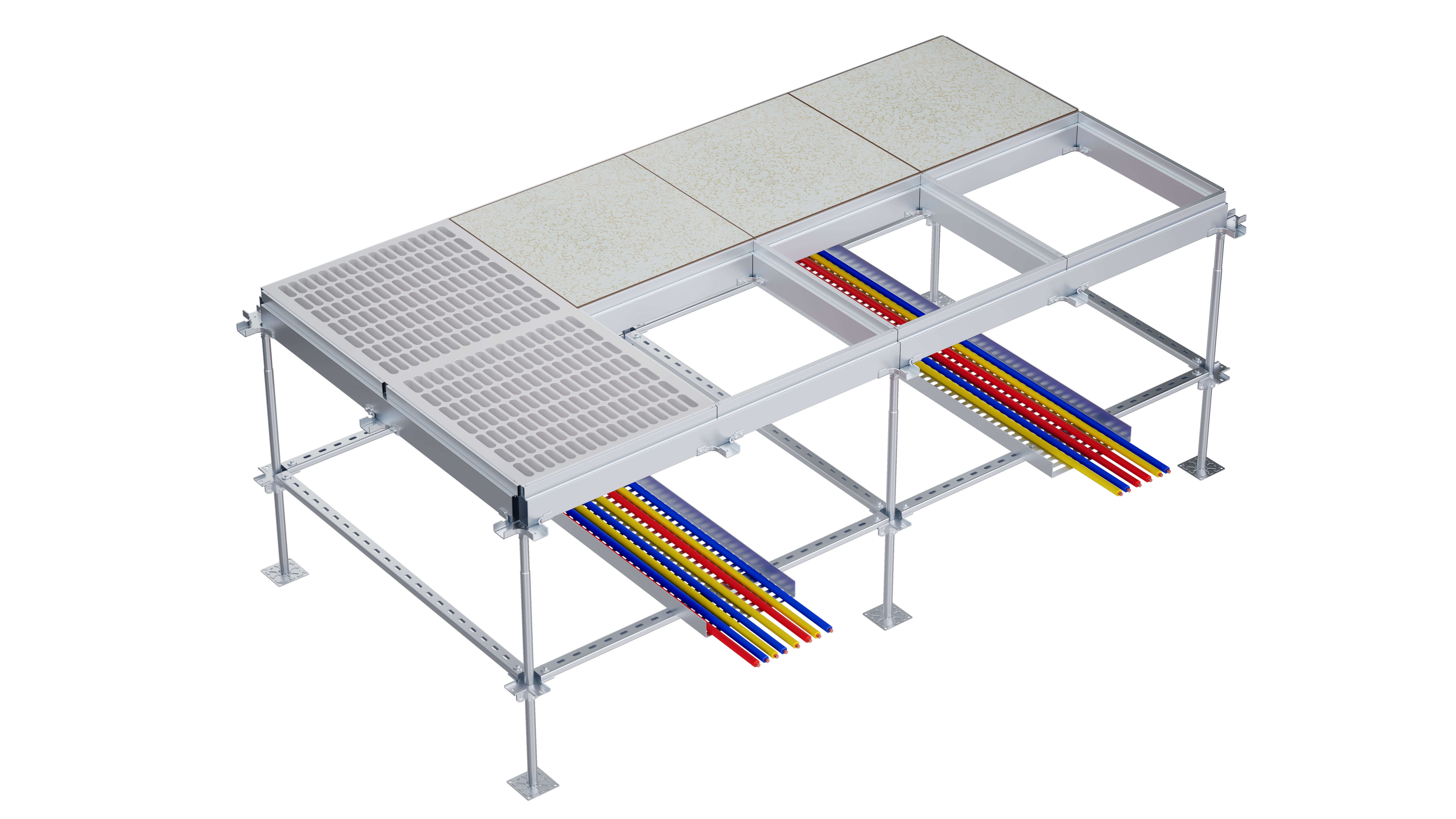

DESIGN FEATURES

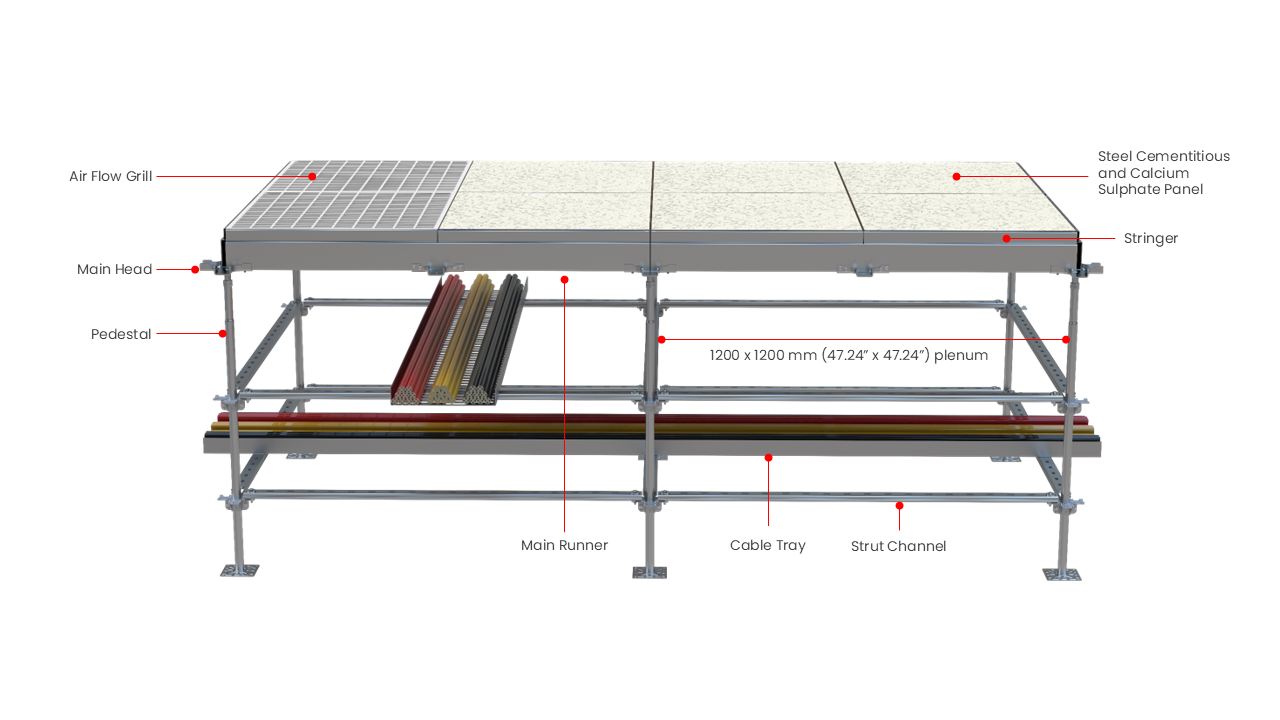

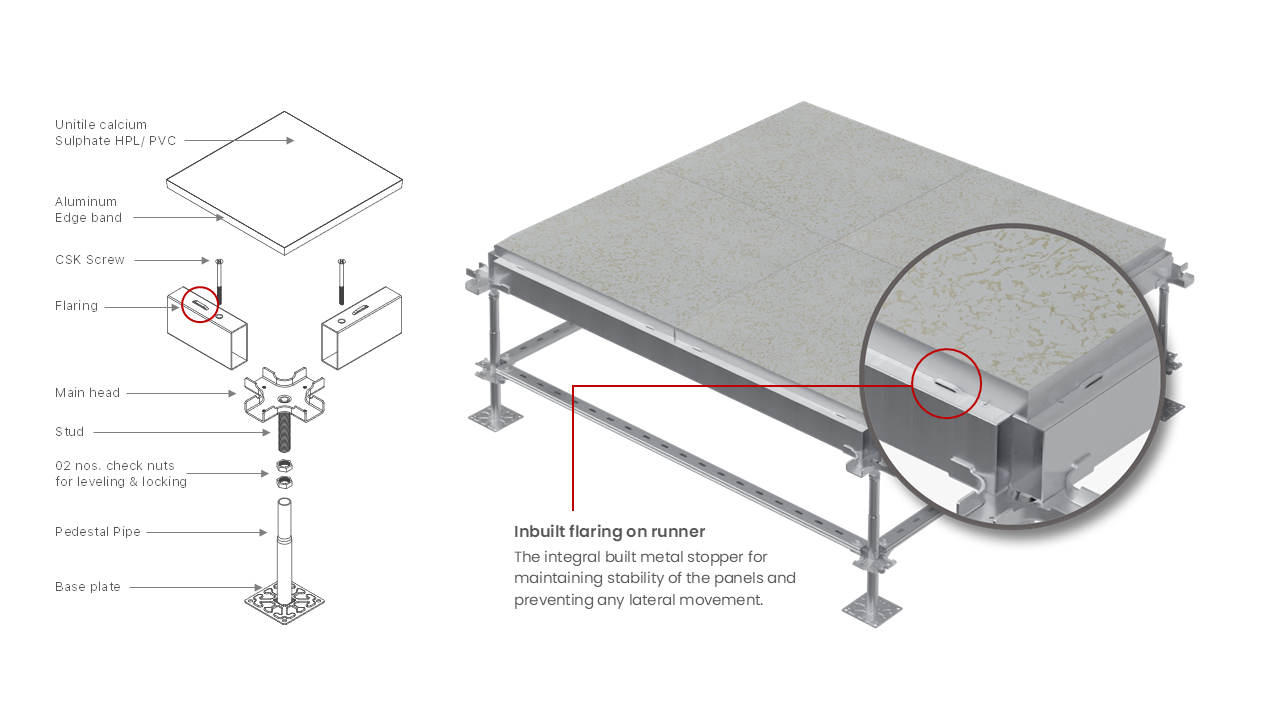

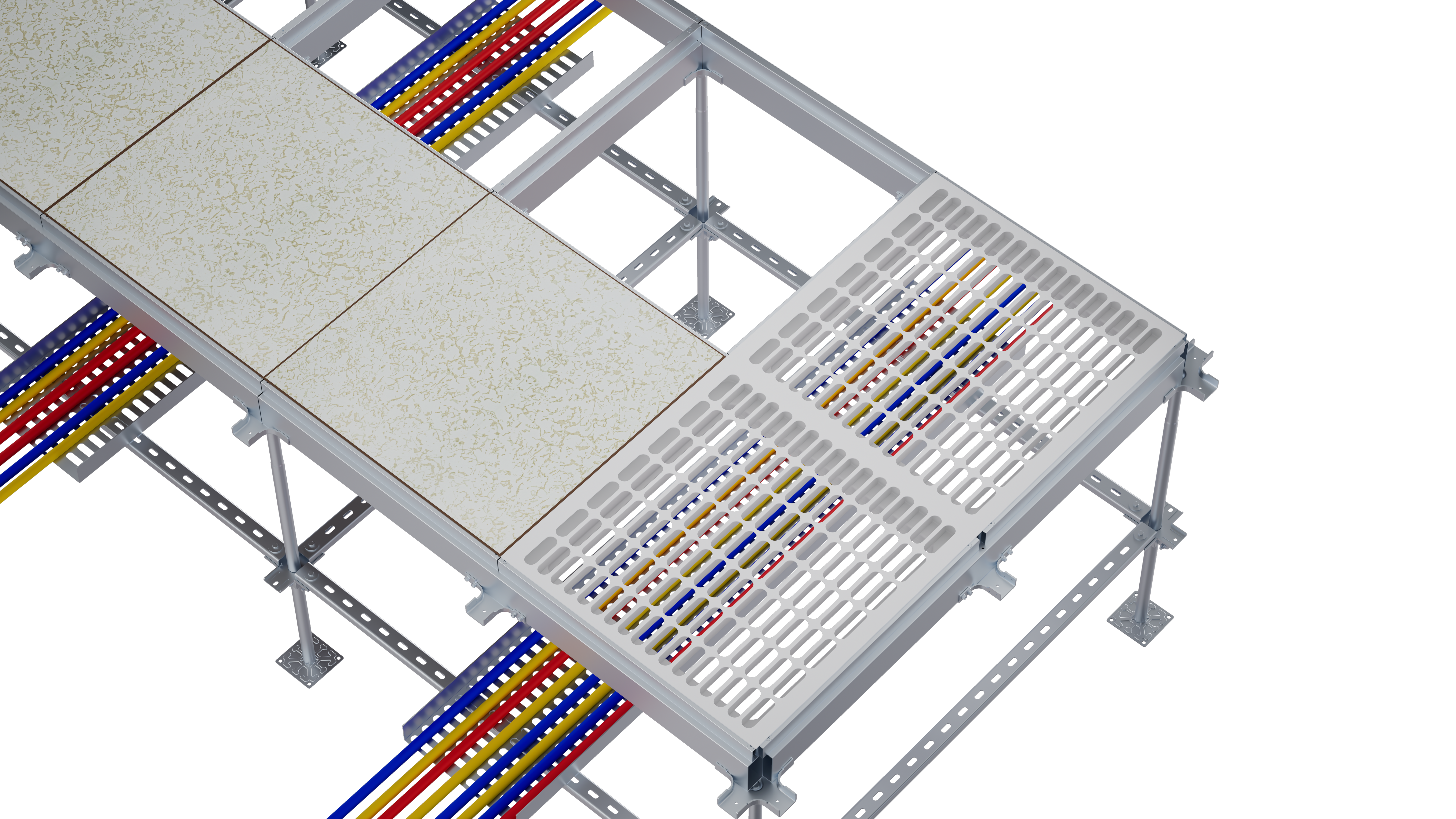

The high-grade steel under structure offers superior strength and expanded bridging capability, with standard finished floor heights ranging from 11.81” – 78.74”. Pedestal layouts with as much as 48” on center offer greater utility aisles and cableways in the plenum. Uniform load ratings of the Nex-Gen system sub-structure of up to 2000 kgs/m2 (409.6 psf). Unique system flexibility offers future equipment expansion within the existing the floor design.

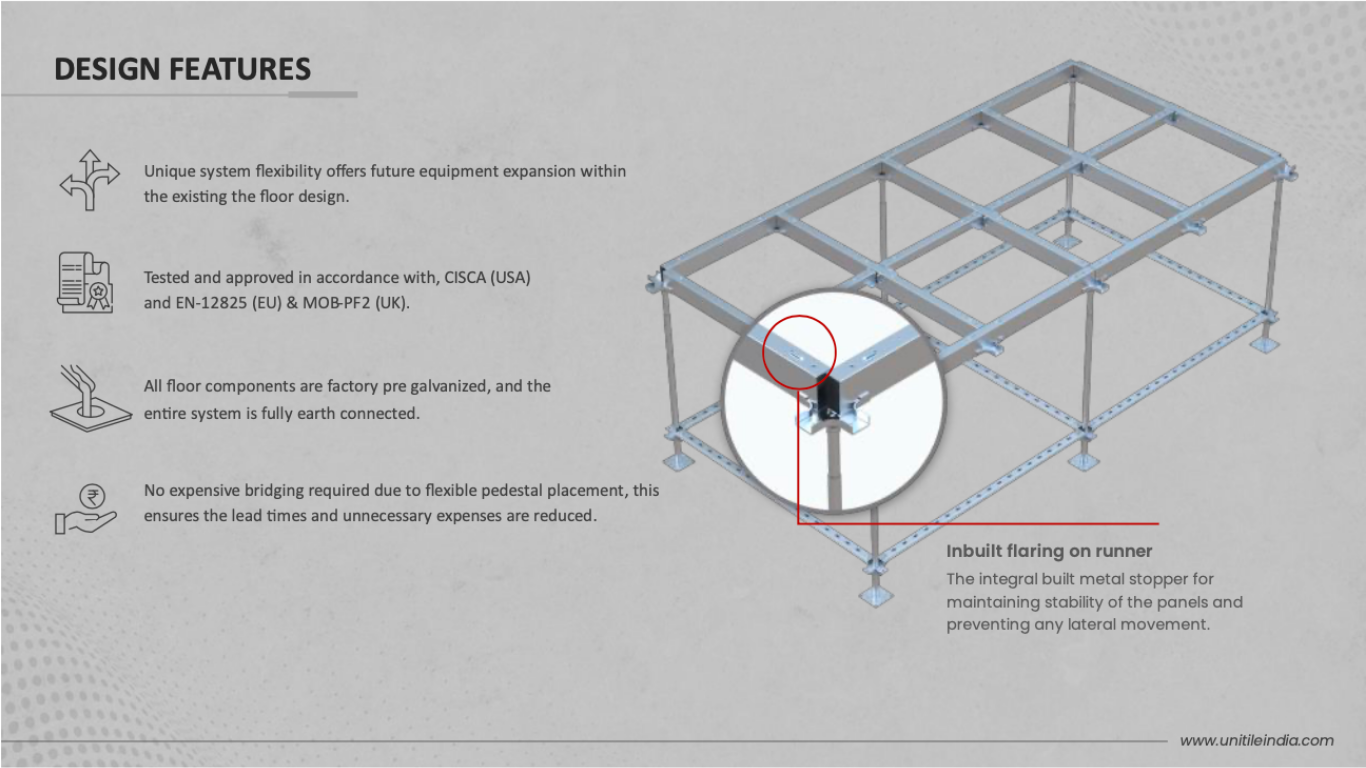

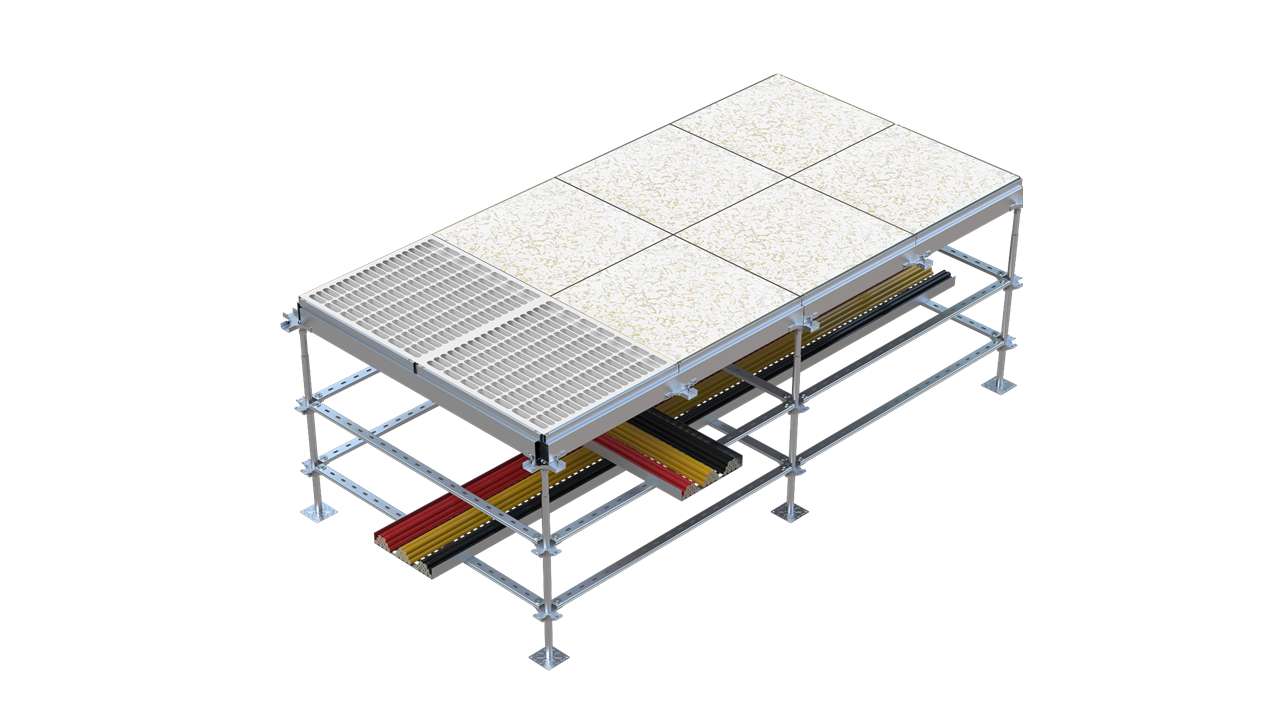

Tested and approved in accordance with, CISCA (USA) and EN-12825
(EU) & MOB-PF2 (UK). All floor components are factory pre-galvanized, and the entire system is fully earth connected. No expensive bridging required due to flexible pedestal placement, this ensures the lead times and unnecessary expenses are reduced.

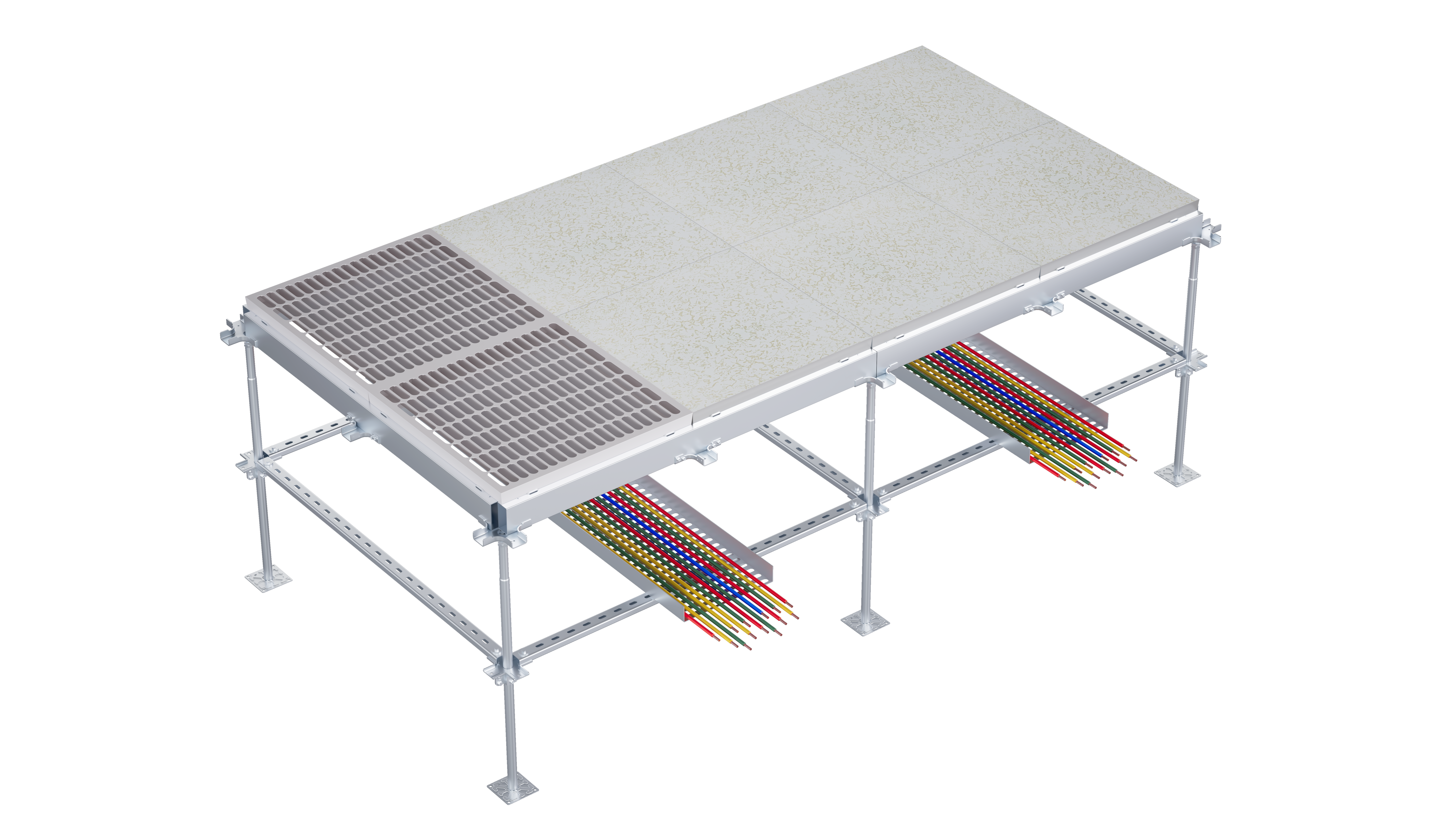

features
A 1200 mm wider plenum prevents fouling of cable tray and enhances cable routing.
Lesser obstruction to underfloor services running below the floor (above 500 mm)
wider span prevents fouling of pedestals and enables easy intervention of services
Ease of maintenance during construction program
Ease of maintenance post-handover for the life cycle of your facility
Lesser no. pedestals ensures faster speed of construction.
system selection guide
- 1000 lbf
- 1000 lbf (4.45 kN)
- 0.196" (5.00 mm)
- 3300 lbf (14.68 kN)
- 2831 kg/m² (580 psf)
- 0.060" (1.52 mm)
- 800 lbf (3.56 kN)
- 600 lbf (2.67 kN)
- 175 lbf (79 kgs)
- 1000 inch-lb / pedestal (113 N·m)
- 1250 lbf
- 1250 lbf (5.56 kN)
- 0.196" (5.00 mm)
- 3900 lbf (17.35 kN)
- 3465 kg/m² (710 psf)
- 0.060" (1.52 mm)
- 1150 lbf (5.12 kN)
- 900 lbf (4.00 kN)
- 175 lbf (79 kgs)
- 1000 inch-lb / pedestal (113 N·m)
- 1500 lbf
- 1500 lbf (6.67 kN)
- 0.196" (5.00 mm)
- 5400 lbf (24.02 kN)
- 4002 kg/m² (820 psf)
- 0.060" (1.52 mm)
- 1250 lbf (5.56 kN)
- 1000 lbf (4.45 kN)
- 175 lbf (79 kgs)
- 1000 inch-lb / pedestal (113 N·m)
- 2000 lbf
- 2000 lbf (8.90 kN)
- 0.196" (5.00 mm)
- 6300 lbf (28.02 kN)
- 5174 kg/m² (1060 psf)
- 0.060" (1.52 mm)
- 1500 lbf (6.67 kN)
- 1250 lbf (5.56 kN)
- 200 lbf (91 kgs)
- 1000 inch-lb / pedestal (113 N·m)
- 2500 lbf
- 2500 lbf (11.12 kN)
- 0.196" (5.00 mm)
- 7000 lbf (31.14 kN)
- 6150 kg/m² (1260 psf)
- 0.060" (1.52 mm)
- 2000 lbf (8.89 kN)
- 1800 lbf (8.01 kN)
- 200 lbf (91 kgs)
- 1000 inch-lb / pedestal (113 N·m)
- 3000 lbf
- 3000 lbf (13.35 kN)
- 0.196" (5.00 mm)
- 10000 lbf (44.48 kN)
- 7223 kg/m² (1480 psf)
- 0.060" (1.52 mm)
- 3000 lbf (13.35 kN)
- 3000 lbf (13.35 kN)
- 400 lbf (181 kgs)
- 1000 inch-lb / pedestal (113 N·m)
