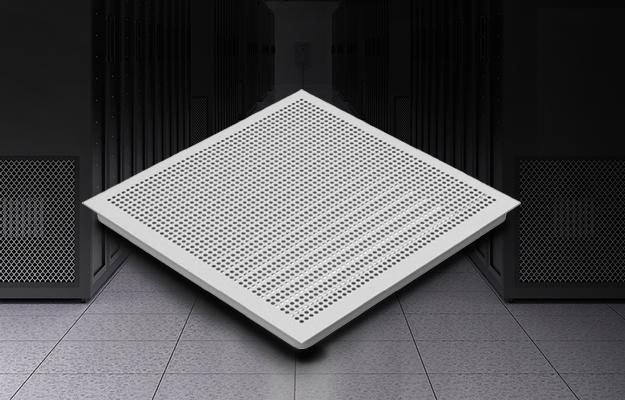

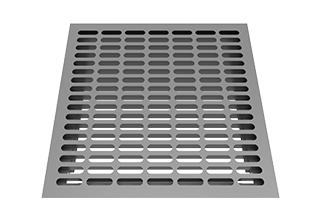

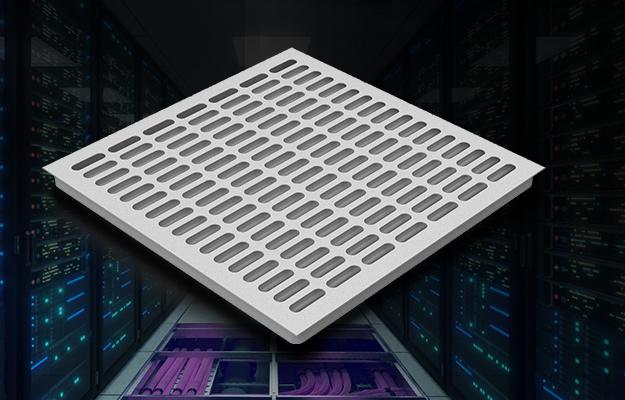

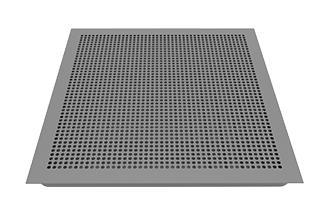

U-FLEX STANDARD AIRFLOW GRILLS
U-flex Standard Air Flow Grills are manufactured from mild steel with a perforated top. It has a vertical steel plate grid core to avoid turbulence & minimize pressure drop. A vertical mesh supports the airflow grill at regular intervals to ensure flatness and high load carrying capacity. It is compatible with adjacent raised access floor system.
DIMENSIONS: 600 mm x 600 mm, 600 X 800
TOP: Bare / High-Pressure Laminate
benefits
High load carrying capacity
Cost effective
Equal airflow performance
Enhanced airflow volume management
Uniform air balance
Adjustable volume damper option
System Selection Guide
- Size of the Active Grill
- 600 x 600 mm
- 600 x 600 mm
- Min. Permissible false floor height
- 450 mm
- 450 mm
- CFM
- 350 - 500
- 350 - 500
- Concentrated Load
- 540 kgs
- 540 kgs
- Uniformly Distributed load
- 1620 kgs/Sq.mt
- 1620 kgs/Sq.mt
- Air Flow Direction
- STD
- STD
