BRUSH GROMMETS

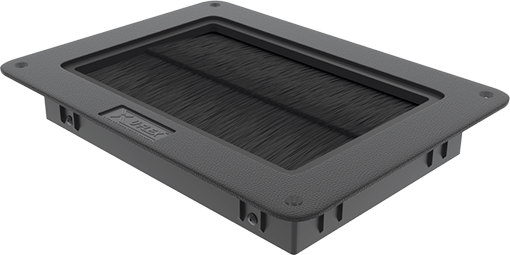

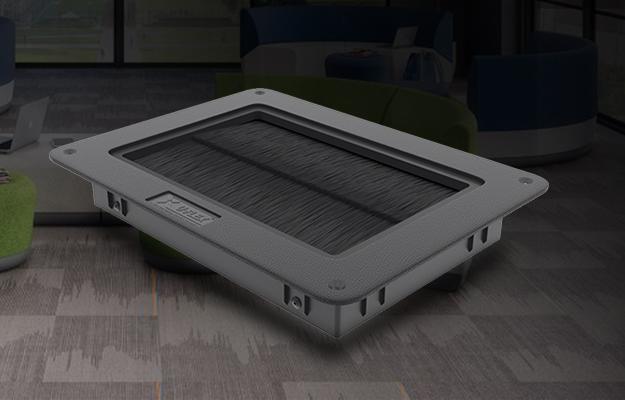

Data Center servers generate high heat, which if not managed can lead to equipment failure. This makes air control systems vital in managing to keep the server room cool. Unitile Air Plugs are a series of engineered raised-floor grommets to plug cut-outs within the raised floor to prevent escape of cold air, thus managing the data center temperature efficiently. They integrate tightly with the raised floor static dissipation system, providing 1 Giga ohm of resistance. They realize a 92-100% seal per grommet.
benefits
Reduced air loss in underfloor cooling system
Increased under floor static pressure
Easy installation
Superior sealing
Maintenance free
Durable & cost-effective
System Selection Guide

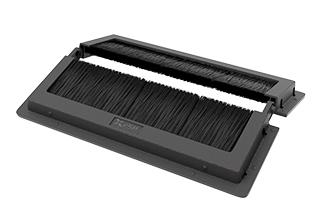

Integrated Raised Floor Air Plugs

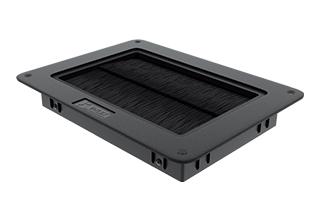

Surface-Mount Raised Floor Air Plugs
Large Surface-Mount Raised Floor Air Plugs
Extra-Large Surface-Mount Raised Floor Air Plugs

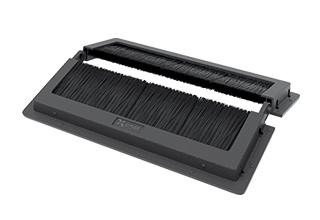

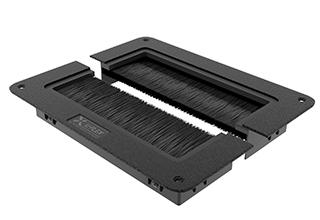

Split Integrated Raised Floor Air Plugs

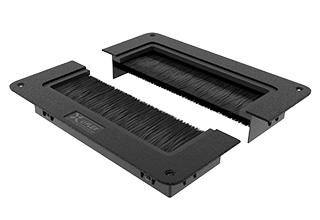

Extended Raised Floor Air Plugs

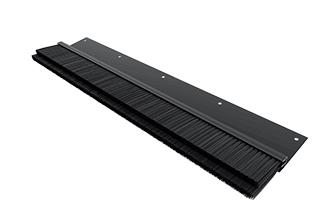

Extended Brush Raised Floor Air Plugs
Circular Brush Grommets

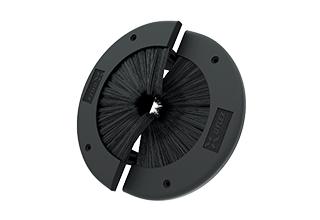

Spilt Circular Brush Air Plugs
Model No - Integrated Raised Floor Air Plugs
Usable Cable Area |
8 x 4 |
203 x 102 |
To install grommet in interior of the tile |
91/4 x 63/4 |
235 x 172 |
To install long side of the grommet on tile edge |
91/4 x 71/2 |
235 x 191 |
To install short side of the grommet on tile edge |
101/4 x 63/4 |
275 x 172 |
Model No - Surface-Mount Raised Floor Air Plugs
Maximum Cutout size sealed |
10 x 71/4 |
254 x 184 |
Usable Cable Area |
81/4 x 4 |
210 x 102 |
Model No - Large Surface-Mount Raised Floor Air Plugs
Maximum Cutout size sealed |
10 x 91/4 |
254 x 248 |
Usable Cable Area |
81/4 x 4 |
210 x 102 |
Model No - Extra-Large Surface-Mount Raised Floor Air Plugs
Maximum Cutout size sealed |
10 x 13 |
254 x 330 |
Usable Cable Area |
81/4 x 4 |
210 x 102 |
Model No - Split Integrated Raised Floor Air Plugs
Maximum Cutout size sealed |
91/4 x 63/4 |
235 x 172 |
Usable Cable Area |
8 x 4 |
203 x 102 |
Model No - Extended Raised Floor Air Plugs
Maximum Cutout size sealed |
231/4 x 4 |
600 x 102 |
Usable Cable Area |
231/2 x 21/2 |
590 x 64 |
Model No - Extended Brush Raised Floor Air Plugs
Maximum Cutout size sealed |
24 x 4 |
610 x 102 |
Usable Cable Area |
231/2 x 21/2 |
600 x 64 |
Model No - Circular Brush Grommets
Maximum Cutout size sealed |
31/2 x 0.8 |
82 x 20 |
Usable Cable Area |
3 x 0.8 |
75 x 20 |
Model No - Spilt Circular Brush Air Plugs
Maximum Cutout size sealed |
41/2 x 2 |
105 x 50 |
Usable Cable Area |
4 x 2 |
95 x 50 |
